Motorized Goniometer Stages Have Low Profile

A 120 mm x 130 mm table with ±15° of rotation at speeds up to 10°/sec.

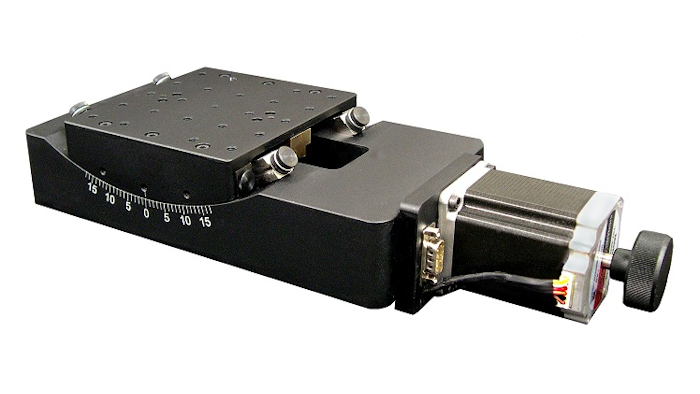

The AK130-15 Goniometer Stage from Optimal Engineering Systems.
The AK130-15 Goniometer Stage from Optimal Engineering Systems.
Optimal Engineering Systems

Optimal Engineering Systems (OES) (Van Nuys, CA) has announced the AK130-15 Goniometer Stage, a low-profile stage suitable for microscopy, crystallography, measurement of surgical cutting blades, laser positioning, light measurement, and inspection applications.

  • A 60 mm high stage with a center of rotation height of 120 mm.
  • A 120 mm x 130 mm table with ±15° of rotation at speeds up to 10°/sec.
  • A precision ground worm gear with a 304:1 ratio and a resolution of 0.0005° with a 10 micro-step per step stepper motor driver.
  • Availability with a servo motor and optical encoder.
  • Repeatability of ±3 arcsec.
  • Accuracy of ±8 arcsec.
  • Backlash of ±3 arcsec.
  • A 329 mm x 130 mm footprint – with standard 1.8° stepper motor.
  • The ability to handle loads to 15 Kg.
  • A calibrated indicator that displays the angle of rotation.
  • A hand knob for manual adjustment.
