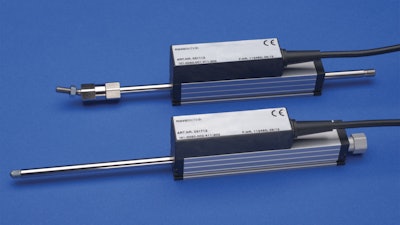

Novotechnik U.S., based in Southborough, MA, has introduced the TE1 Series of absolute linear position sensors, offering high precision, durability, and signal-conditioned output options for reliable integration into industrial control systems.
The TE1 Series is engineered for precise linear position measurement with direct analog output, enabling long cable runs and direct connection to process controllers in automation, manufacturing, and testing systems.
Features & Benefits:
- Measurement Ranges: 25 to 150 mm for both standard and return-spring versions
- Output Options: 0–10 V, 10–0 V, 4–20 mA, 20–4 mA (positive or negative slope)
- Resolution: Unlimited
- Repeatability: 0.002 mm
- Independent Linearity: ±0.075% of full scale
- Service Life: Greater than 100 million movements
- Design: Compact 0.70 in (18 mm) housing profile
- Connection Types: Cable and connector versions available
- Ball Coupling: Included for backlash- and shear force-free operation
Ideal for industrial applications that require robust, accurate position sensing with minimal signal degradation over distance. Suitable for integration in systems with long cable runs or where analog signal integrity is critical.
The TE1 Series includes both spring-return and non-spring-return versions and is available in multiple configurations to suit OEM and system integrator needs.
For more information, visit Novotechnik U.S.
