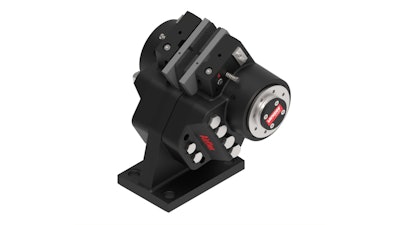

Danfoss' Airflex Failsafe Caliper Brake.
Danfoss
The Airflex ACB-F3 is engineered for park-and-hold or emergency stop functionality in harsh environments, offering robust braking force and easy serviceability for applications in mining, oil and gas, marine, processing, and heavy machinery.
Features & Benefits:
- Failsafe Braking: Spring-applied, hydraulically released design ensures system safety in the event of power failure
- High Performance:
- Clamping force: 20–120 kN
- Braking force: 16–96 kN
- Release oil pressure: 40–190 bar (580–2,756 psi)
- Durability: Friction pads deliver up to 50% longer service life than competitive products
- Thermal Management: Large pad surface supports high thermal dissipation
- Modular Installation: Adaptable to various disc configurations; multiple calipers can be used per disc to increase braking torque
- Simplified Maintenance: Friction pads, seals, and springs can be replaced without removing the caliper
- Monitoring Options: Wear and engagement sensors available for remote diagnostics
- Corrosion-Resistant Version: Available for use in extreme environmental conditions
Ideal for high-torque applications in:
- Mining conveyors and hoists
- Grinding mills and drilling drawworks
- Marine winches and cranes
- Processing and energy systems
- Heavy-duty and remote industrial equipment
The ACB-F3 is the first model in a new brake series, with additional frame sizes to be released. Danfoss also offers complete braking systems including Vickers hydraulic power units, custom discs, hubs, and control systems.
For further details, visit the Danfoss Caliper Disc Brakes webpage.
