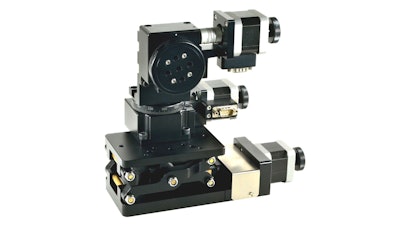

OES (Optimal Engineering Systems, Inc.), based in Van Nuys, CA, has released the LPT-60-60-60 Series of Lift, Pan, and Tilt Motorized Motion Control Stages, engineered for compact, high-precision positioning applications in industrial and laboratory settings.
The LPT-60-60-60 stages integrate vertical lift and rotary motion control to support applications like laser processing, scanning, reverse engineering, camera positioning, and mirror alignment.
Features & Benefits:
- Lift Axis: 60 mm vertical travel with precision scissor lift design and roller bearings for high parallelism
- Pan Axis: Horizontal rotary stage, ±180° CW/CCW rotation
- Tilt Axis: Vertical rotary stage, 360° continuous CW/CCW rotation
- Drive Options:
- LPT-60-60-60-01: Two-Phase Stepper Motors with micro-stepping
- LPT-60-60-60-04: Stepper Motors + Quadrature Optical Encoders
- LPT-60-60-60-02: Three-Phase Brushless Servo Motors + Encoders
- LPT-60-60-60-03: DC Brushed Servo Motors + Encoders
- Precision: Vertical repeatability ±5 microns, typical positional accuracy 15 microns (higher precision available with servo options)
- Compact Design: Optimized for use in confined spaces or complex assemblies
Suited for precision motion control in applications such as laser drilling, assembly, optics inspection, and other automation tasks that require coordinated vertical and rotary movement.
These motion stages are available with motion controllers and can be ordered as a plug-and-play system with RS-232, USB, joystick, and keypad interface options.
For more information, visit Optimal Engineering Systems.
