Hirose's Hybrid FPC-to-Board Connector
Hirose

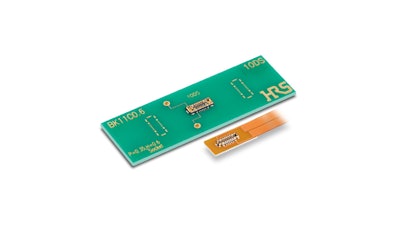

Hirose has expanded its hybrid FPC-to-board connector family with the BK11 Series, a multi-power version designed for high-current, space-constrained portable electronic devices.
The BK11 Series delivers high power capacity in a compact footprint, supporting performance-driven designs in consumer electronics such as smartphones, wearables, and other miniaturized products.
Features & Benefits:
- High Current Support:
- Two main power contacts: 4A per pin
- Four sub-power contacts: 2.5A per pin
- Ten signal contacts
- Flexible Power Configuration:
- 4A × 2 positions + 2.5A × 4 positions
- 8A × 2 positions
- Compact Design:
- 0.35 mm pitch, 1.9 mm width, 5.33 mm length, 0.6 mm stacking height
- Saves up to 46% mounting space compared to conventional connectors
- Durability & Reliability:
- Fully armored metal housing for protection against misalignment
- Molded plug and receptacle help prevent solder wicking
- Ease of Assembly:
- ±0.32 mm (pitch) and ±0.23 mm (width) self-alignment range
- Designed for pick-and-place mounting
Engineered for high-reliability, space-critical applications in mobile and wearable devices, the BK11 Series is suitable for a wide range of architectures and power configurations.
For additional product specifications and documentation, visit the BK11 Series product page.
