Higher power LP2 switching power supplies rated up to 900 watts from Acopian Power Supplies.
Acopian Power Supplies

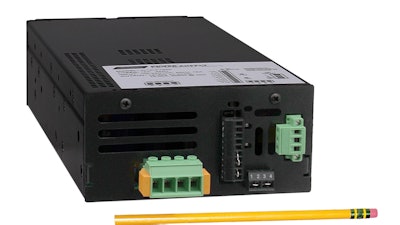

Acopian Power Supplies (Easton, PA) has launched its higher power LP2 switching power supplies rated up to 900 Watts. Models are available in both single and wide-adjustment DC output voltages ranging from 5 VDC to 125 VDC and 0-5 VDC to 0-125 VDC and up to 900 watts.
Features include:
- All models are voltage and current programmable
- Constant current controllable—can also be controlled from 0 volts and 0 amps to their rated output
- All models tested to run off GFCI circuits
- Highly configurable design
- Universal input (90-265 VAC) or they can operate off DC input (110-350 VDC)
- Power factor correction (PFC)
- Output enable
- Constant voltage and current modes
- Voltage and current monitor terminals and programming capabilities
- Short circuit and overload protection
- Touch-safe pluggable connectors
- Remote sensing
- ‘V ok’ signal monitoring
- ‘Soft start’ operation.
- N+1 redundancy/paralleling up to 4 like models (optional)
- Alarm with relay contacts (optional)
- Moisture/fungus proofing (optional)
- Applicability in test equipment, analog systems, power, military, aerospace, manufacturing, controls, medical, aviation and R&D.
Models can be convection cooled (600 watts) or fan cooled (900 watts) and are designed and built in the United States.
For more information, visit www.acopian.com.
