EPIC Female Pipe Valve

This check valve achieves a high flow capacity and reduced pressure loss compared to other poppet style check valves of similar sized connections.

Check All Sized
Screen Shot 2019 05 31 At 10 44 54 Am
Check-All Valve

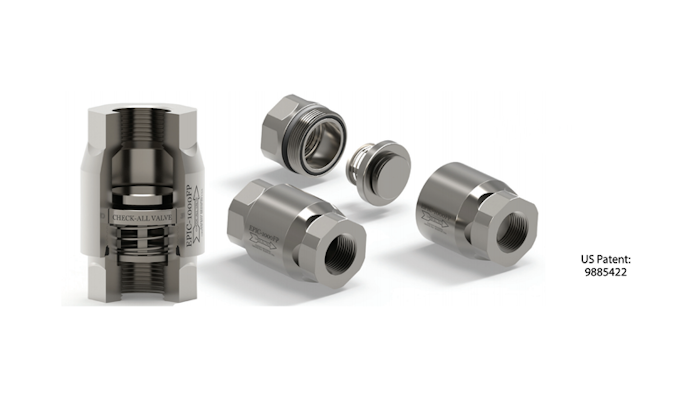

The EPIC Female Pipe valve from Check-All Valve (Des Moines, IA) is a poppet style check valve with female NPT threaded connections machined from 300 series stainless steel bar stock with Aflas seat/seals and a 1/2-PSI stainless steel spring setting (cracking pressure) that can be installed in any flow orientation. This check valve achieves a high flow capacity and reduced pressure loss compared to other poppet style check valves of similar sized connections. Additionally, the EPIC series incorporates a drop-in replaceable check mechanism (Replaceable Insert Kit sold separately) that is easily installed into the existing body without requiring additional assembly of separate checking components.

Due to the materials of construction, high flow capacity, field repairability and the quality customers have come to expect from Check-All, the EPIC check valves are uniquely suited for a very wide range of applications in liquids, gases and steam.

www.orderepic.com; 515-224-2301
