Subminiature, Vertically Actuated Switches Are Industry First

A double-pole, triple throw configuration can be used to replace two-position slide switches.

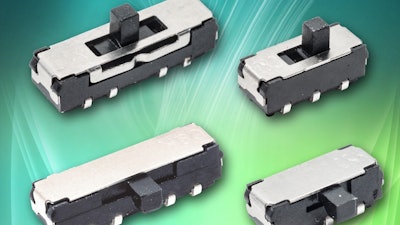

C&K Components has introduced the JS207, the industry’s first subminiature, vertically actuated on-on-momentary slide switch series.
C&K Components has introduced the JS207, the industry’s first subminiature, vertically actuated on-on-momentary slide switch series.
C&K Components

C&K Components (Newton, MA) has introduced the industry’s first subminiature, vertically actuated on-on-momentary slide switch series. The new JS207 Series slide switches feature:

  • A double-pole, triple throw (DP3T) configuration that can be used to replace a two-position slide switch.
  • A separate momentary push switch for applications that require the on-on-mom function.
  • A J-Bend SMT lead option that reduces PCB footprint by up to 50%.
  • Applicability in compact headsets for consumer audio and video equipment, test and measurement equipment, and home automation and alert systems, such as thermostats, smoke and carbon monoxide detectors.
  • Contacts rated for 0.3 A at 6 VDC, with a minimum electrical life of 5,000 cycles.
  • Insulation resistance at 500 VDC is 100 MΩ.
  • Contact resistance is 70mΩ (max).
  • Operating temperature from -40°C to 85°C.
  • Availability in standard tape-and-reel packaging.
  • A 13 mm x 3.6 mm x 3.5 mm footprint.
  • Rated for infrared reflow soldering at 260°C.

For more information, visit http://www.ck-components.com/media/1422/js.pdf; or call 617-969-3700.
