Food Grade HMI Fixes Frequent Failures

New PCAP touchscreen can be operated with gloves.

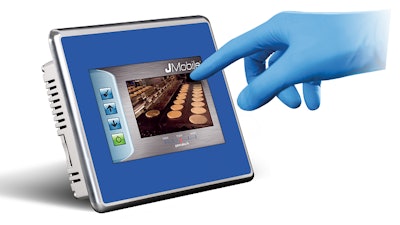

The eTOP4FOOD from Exor is now available from Electromate.

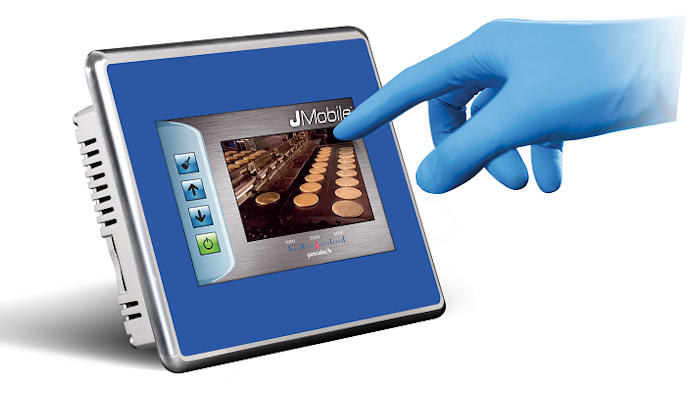

The eTOP4FOOD from Exor is now available from Electromate.
Exor

The eTOP4FOOD from Exor (Cincinnati, OH) is a new IP69K PCAP Touch-Glove-Compatible HMI that features a 316 SS bezel and polyester front foil resistant to high pressures, high temperatures, and harsh chemical wash-downs. The HMI, available from Electromate, features:

  • Stainless steel bezel 316/1.440l.
  • A food-compatible gasket.
  • Food standard sealing compliant with FDA 21 CFR 177.2006.
  • A PCAP touchscreen that can be operated with gloves.
  • A 7“ TFT display that is 800x480 with 64K colors.
  • A 1 GHz ARM CPU with 256 MB Flash.
  • Designed in accordance with DIN EN1672-2 and EHEDG guidelines.
  • A temperature range from -20°C to +60°C.
  • 2 host interface v.2.0, SD Card Slot, 2 Ethernet port with integrated switch.
  • Serial port RS-232, RS-485, RS-422, MPI Software configurable.
  • Ready for integrated CODESYS PLC and I/O.

For more information, visit http://www.exoramerica.com/.
