CNC Scribe Marking Machine Technology

It quietly scribes text or graphics into hard or soft surfaces.


Columbia Marking Tools Inc. (Chesterfield, MI) has pioneered the application development of many of the marking processes used in manufacturing today, including enhanced versions of dot-peen marking, low-stress dot-peen marking, impact marking, roll marking, laser marking and, now, scribe marking.

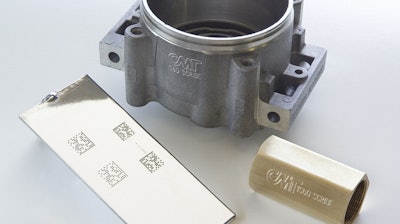

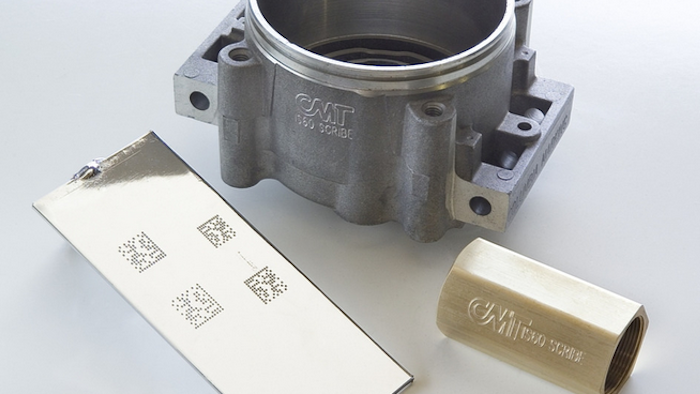

Columbia developed a new C-Series of markers that perform both dot-peen and what is called the “Silent Scribe” CNC marking system. Columbia originally patented programmable CNC scribe marking machine technology in 2005 primarily for standard I-Mark scribe markers for marking 2D Square Dot matrix codes. The marker utilizes an x-y-z axis slide arrangement that is driven through precise ballscrews. The scribe head, mounted on a platen that is linked to the slides, uses a diamond stylus to quietly scribe text or graphics into hard or soft surfaces producing fully-formed lines, curves and 2D matrix codes. The control of the head movement is provided by a programmable controller that interfaces with standard Windows-based systems combined with the high-power I-Mark marking system to create the marks and codes.

The machine can operate as a stand-alone or, because of its compact size, can be easily integrated into an automated production system that use robots, because the marking head is designed to “get out of the way.”; 586-949-8400
