High-Volume Gun Barrel Drilling

It features automated loading and unloading of the barrels to enable long periods of untended machine running.

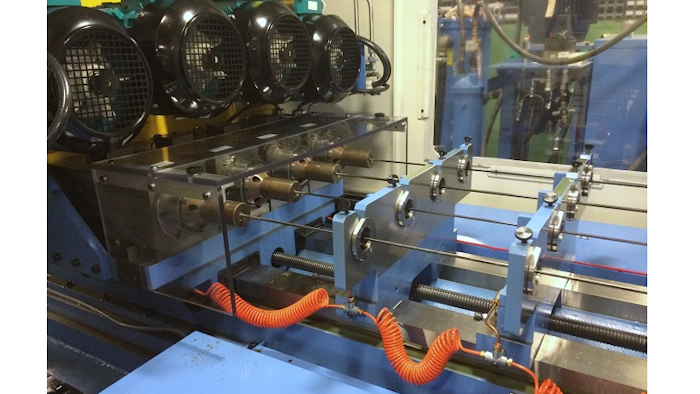

Kays Imts Sized

The DeHoff G548-D4 is a four spindle gundrilling machine designed by Kays Engineering (Marshall, MO) for high-volume production of gun barrels. It features automated loading and unloading of the barrels to enable long periods of untended machine running. Up to 48 barrels can be pre-loaded into the magazine holder, and lift-and-carry automation is used to load the barrels in and out of the fixturing. Features include:

  • Four gundrilling spindles with a barrel diameter range from 17 to 50 caliber, and a maximum barrel length of 27 inches (686 mm).
  • A cast iron drill head base with steel box ways, plus hand-scraped and fitted saddle, gibs and straps (versus linear guide ways and milled surfaces). This results in superior vibration damping and extended gundrill tool life.

The G548-D4 is part of a turnkey package of gun barrel manufacturing equipment offered by DeHoff, including machines for gundrilling, pull-reaming, button rifling, cut rifling, as well as tooling, stress relieve ovens and air gauging equipment. DeHoff machines are built-to-order.

See the product at IMTS booth #338376

www.kays-dehoff.com/dehoff/gun-barrel; 660-886-9929
