Walk-In Oven for Annealing Polyurethane Tubing

A 4,200 CFM, 3-HP recirculating blower that provides vertical downward airflow to the workload.

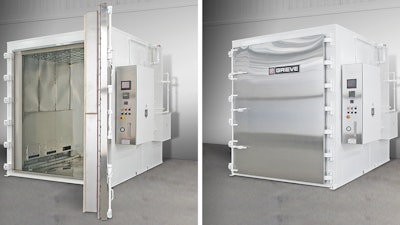

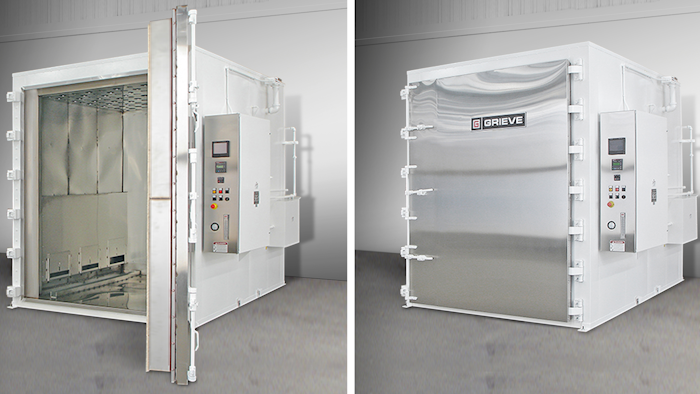

The No. 1038 from Grieve is a 500°F inert atmosphere walk-in oven.
The No. 1038 from Grieve is a 500°F inert atmosphere walk-in oven.
Grieve

The No. 1038 from Grieve (Round Lake, IL) is a 500°F (260°C), inert atmosphere walk-in oven currently used for annealing polyurethane tubing. Features include:

  • Workspace dimensions of 60” W x 72” D x 84” H.
  • 40 KW installed in Incoloy-sheathed tubular heating elements.
  • A 4,200 CFM, 3-HP recirculating blower that provides vertical downward airflow to the workload.
  • 6” insulated walls.
  • An aluminized steel exterior with white epoxy paint.
  • Type 304, 2B finish stainless steel interior with continuously back-welded seams and inert atmosphere construction.
  • A pressure regulator, flow meter, and pressure gauge.
  • Inner oven walls that seal directly against ½” thick silicone rubber door seal.
  • Interior seams welded gas-tight.
  • All wall penetrations fitted with compression fittings.
  • A 4” insulated floor with truck wheel guide tracks mounted on top of the floor.
  • A paperless event recorder.

For more information, visit www.grievecorp.com; or call 847-546-8225.
