Schottky Bridge Rectifiers Feature 1.2 mm Profile Package

Company says the surface mount case height is 54% lower than the comparable HD DIP.

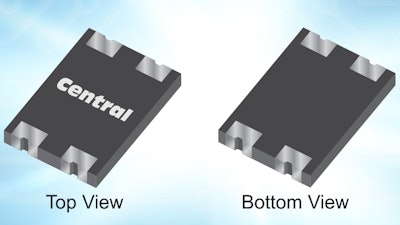

Central Semi Cbrdfsh
Central Semiconductor

Central Semiconductor (Hauppauge, NY), a manufacturer of discrete semiconductors, has introduced the CBRDFSH series, a new family of Schottky bridge rectifiers. These full wave bridge rectifiers use individual glass passivated die to reduce leakage and improve performance and reliability.

Additional features include:

  • Availability in 1.0A - 2.0A, 40V - 100V options.
  • A low profile BR DFN surface mount case that is 1.2 mm in height, 54% lower than the comparable HD DIP.
  • Energy efficiency.
  • Forward voltage (VF) as low as 500mV.
  • Applicability in Power over Ethernet (PoE), intelligent lighting and power adapters, or anything requiring a space saving and energy efficient Schottky bridge rectifier.

The series includes the following devices:

  • CBRDFSH1-40 (1A, 40V)
  • CBRDFSH1-60 (1A, 60V)
  • CBRDFSH1-100 (1A, 100V)
  • CBRDFSH2-40 (2A, 40V)
  • CBRDFSH2-60 (2A, 60V)
  • CBRDFSH2-100 (2A, 100V)

Samples are available upon request.
