Flat Zero-Backlash Gear

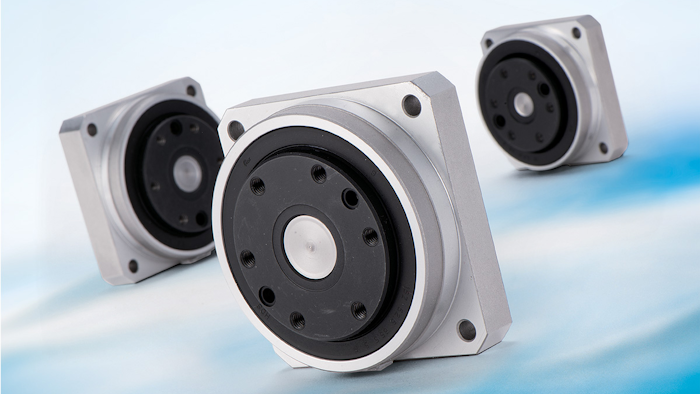

Harmonic Drive (Peabody, MA) LLC recently introduced a new, ultra-flat, zero-backlash gear unit. The CSF-2UP gear unit is the newest model in the CSF mini-series product line. Features include:

• A large cross-roller bearing with high-moment stiffness at the output flange, which allows direct mounting of the load without the need for any additional support, enabling compact designs
• A housing.
• A precision output bearing.
• Suitable for robots or manipulators requiring an ultra-compact solution.
• Axial and radial run-out characteristics.
• High load capacity.
• Gear Ratios of 30:1, 50:1, and 100:1 available in each size.

For more information, visit www.harmonicdrive.net; or call 978-532-1800.
