VFD Oil-Free Screw Compressors

These feature the latest in Siemens drive technology to deliver superior part load efficiency and steady pressure in applications with varying air demands.

Kaeser Sized

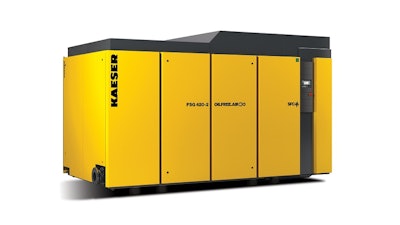

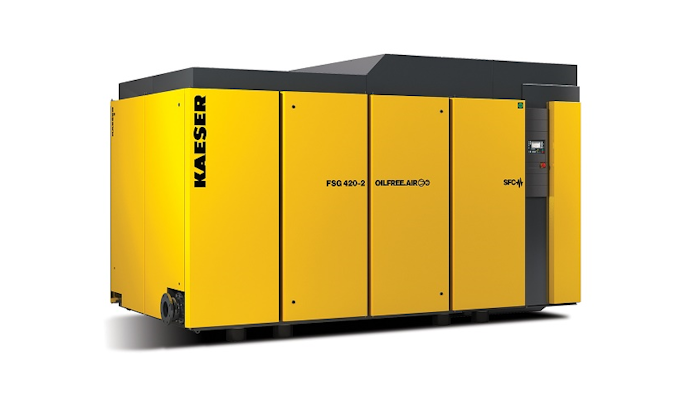

Kaeser Compressors (Fredericksburg, VA) now offers oil-free rotary screw compressors with Sigma Frequency Control (SFC). According to the company, these new VFD models meet varying flow demands while delivering oil-free air. The CSG-2 SFC, DSG-2 SFC, and FSG-2 SFC models feature the latest in Siemens drive technology to deliver superior part load efficiency and steady pressure in applications with varying air demands. Features include:

  • Availability from 75 to 450 hp and cover flows from 125 to 1788 cfm at 125 psig. They offer large flow control ranges and are up to 9% more efficient than the competition.
  • A premium, two-stage compressor airend. The rotors' special coating can handle temperatures up to 575 °F. This highly abrasion-proof coating will not wear, providing reliable sealing and protection. This means compressed air delivery and energy consumption remain consistent, even after years of operation.
  • Stainless steel rotors in the second compression stage, helping guarantee compressed air quality and significantly increase service life.
  • Standard with Sigma Control 2. This intelligent controller offers unsurpassed compressor control and monitoring with enhanced communications capabilities for seamless integration into plant control/monitoring systems and the Industrial Internet of Things (IIoT).
  • IE3 premium efficiency motors with PT 100 sensors to measure and monitor winding temperatures for maximized motor switching frequency and minimized idling.
  • A hydraulic inlet valve, which eliminates replacing pneumatic diaphragms, resulting in reduced service costs and downtime.
  • Fiber-free pulsation dampeners, keeping pressure losses to an absolute minimum, maintaining consistent air quality and preventing compressed air contamination.
  • Built-in heat recovery options, giving sustainable energy savings and contributing to lowering a plant's carbon footprint.

www.kaesernews.com/oil-free_SFC; 877-586-2691
