Modular Motion Control System Integrates Motor Drives

The system integrates up to eight universal motor drives.

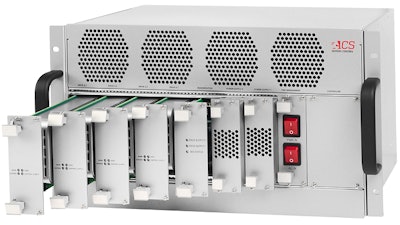

The MP4U modular motion control system from ACS Motion Control.

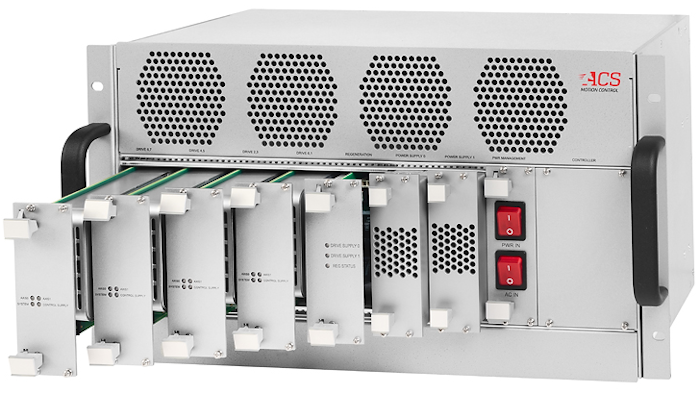

The MP4U modular motion control system from ACS Motion Control.
ACS Motion Control

ACS Motion Control (Bloomington, MN) has developed a modular rack-mounted motion control system that integrates up to eight universal motor drives with power supplies and an optional EtherCAT motion controller to deliver a customized solution. The MP4U control system features:

  • A 19" rack-mounted chassis.
  • Up to 8 axes of high performance UDM3U drives and/or ultra-high performance NPM3U (NanoPWM) drives.
  • A 48 VDC and/or 96 VDC motor bus voltage power supply.
  • An optional internal motion controller, with optional EtherCAT network slave (DS402 multi-axis drive) functionality is to be released in 2018.
  • An optional high-speed EtherCAT-to-EtherCAT bridge that enables to connect the entire system as a node in an EtherCAT network managed by any automation controller supporting DS402 protocol (SPiiPlusES functionality).
  • A current range from 3.3A/10A (continuous peak) to 13.3A/40A.
  • A 260 mm (H) x 483 mm (W) x 306 mm (D) design.

For more information, callĀ 763-559-7669 ext.131; or visitĀ www.acsmotioncontrol.com.
