550°F Shelf Oven Dries Powdered Resin

The shelf oven has four independent doors for access to the workspace.

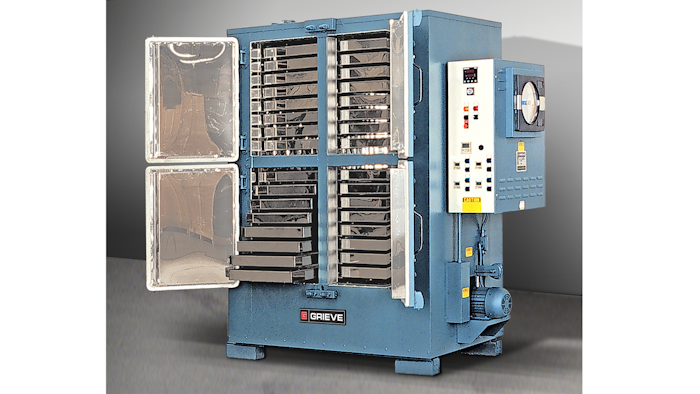

The No. 859 from Grieve is a 550°F (288°C) shelf oven.
The No. 859 from Grieve is a 550°F (288°C) shelf oven.

The No. 859 from Grieve (Round Lake, IL) is a 550°F (288°C), shelf oven that is currently used for drying powdered resin in trays at the customer’s facility. Features include:

  • Workspace dimensions of 44” W x 30” D x 60” H.
  • 12 KW installed in Nichrome wire heating elements.
  • A 1,000 CFM, 1-HP recirculating blower that provides horizontal airflow to the workload.
  • 4” insulated walls.
  • Type 430 stainless steel interior.
  • 4 independent doors for access to workspace — each opening 20-1/2” wide x 28-1/2” high.
  • 32 trays: 19” wide x 29” long x 2-1/2” deep.
  • A weekly timer to start and stop oven.
  • A digital timer for each compartment with button and pilot light to indicate end of cycle.
  • Controls include a digital indicating temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower air flow safety switch and a 10” diameter circular chart recorder.

For more information, call 847-546-8225, or visit
