Eductors Discharge 1,410 GPM at 50 PSI

A unique venturi design enables smaller pumps to circulate very large volume.

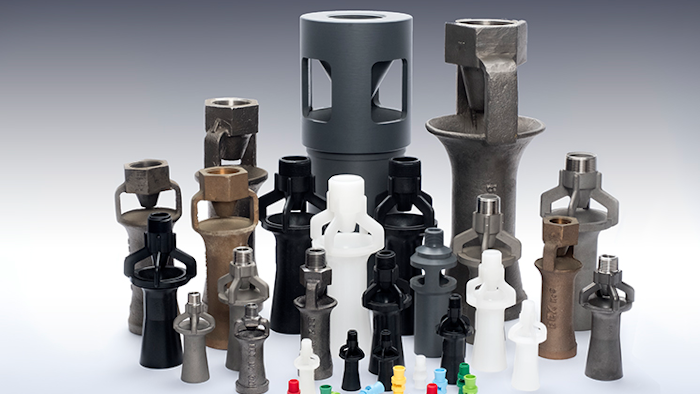

New eductors for tank mixing applications from Bex.
New eductors for tank mixing applications from Bex.
Bex

Bex (Ann Arbor, MI) has introduced a series of eductors for tank mixing applications. The eductors are designed for tank immersion, and feature a unique venturi design that enables smaller pumps to circulate very large volumes of tank solution. Additional features include:

  • The ability to take advantage of liquid to create a high velocity flow yield at the diffuser.
  • The ability to circulate up to 5X the pump output – with a discharge plume broader than the jet from a solid stream nozzle of equivalent energy.
  • Eductors with ¼” to 3” ports discharge up to 1,410 gallons per minute at 50 PSI.
  • Mix and agitate without introducing air, steam, or contaminants into the solution.
  • No moving parts.
  • Manufactured in cast iron, 316 stainless steel, and polypropylene — available in Kynar for applications demanding high mechanical strength, chemical inertness and thermal stability.
  • Applicability in food/beverage and vitamin product manufacturing.

For more information, call 734-389-0464; or visit www.bex.com.
