NEMA Snap-In & Screw-Mount Sockets Available in Multiple Configuration

Interpower's nine series product line includes both snap-in and screw-mount sockets with four different configurations available for each one.

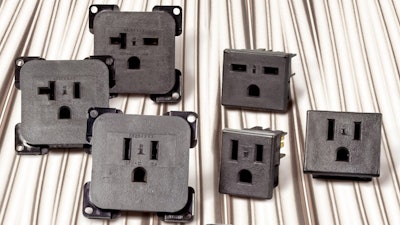

NEMA 5-15, 5-20, 6-15, and 6-20 snap-in and screw-mount sockets are now available from Interpower.
NEMA 5-15, 5-20, 6-15, and 6-20 snap-in and screw-mount sockets are now available from Interpower.
Interpower

Interpower (Oskaloosa, IA) has announced that the complete series of NEMA 5-15, 5-20, 6-15, and 6-20 snap-in and screw-mount sockets are now available. The most recent addition of the 6-15 and 6-20 sockets completes an Interpower nine series product line which includes both snap-in and screw-mount sockets with four different configurations available for each one. Options include QD and solder tabs with or without wire binding screws.

The NEMA 5-15 socket is the only snap-in socket that has two different size face plates. The small face plate (8821 series) is 26.9 x 32 mm in size and the large one (8822 series) is 37.27 x 31.99 mm. The rest of the snap-in sockets utilize the large face plate size. The screw-mount sockets have a common panel cutout dimension.

Current ratings for the sockets include:

  • 5-15β€”15A/125 VAC.
  • 5-20β€”20A/125 VAC.
  • 6-15β€”15A/250 VAC.
  • 6-20β€”20A/250 VAC.

For more information, visit www.interpower.com, or call 800-662-2290.
