Wireless Limit Switches Have Internal Electrodynamic Energy Generator

The displacement of the actuator generates the power to send a uniquely coded signal to one or more compatible, easily-programmed receivers.

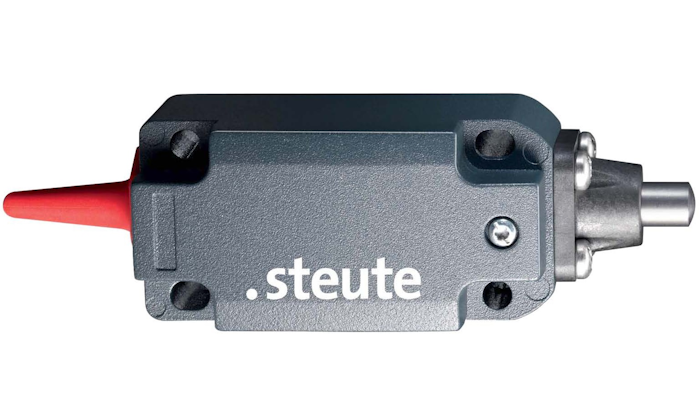

Wireless, Batteryless Limit Switches from Steute Industrial Controls.
Wireless, Batteryless Limit Switches from Steute Industrial Controls.
Steute Industrial Controls

Steute Industrial Controls (Ridgefield, CT) offers a comprehensive line of Wireless, Batteryless Limit Switches that feature an internal electrodynamic energy generator. The displacement of the actuator generates the power to send a uniquely coded signal to one or more compatible, easily-programmed receivers. Features include:

  • A confirmation signal within 15 ms — if not, it transmits a second signal.
  • A receiver that accepts up to 10 discrete signals per channel.
  • Available at 915 MHz (USA/Canada/Australia) or 868 MHz (Europe).
  • A max transmission range of 40 m indoors, 450 m outdoors.
  • Limit switch signal configurable at receiver (e.g.  NO, NC, other).
  • Ingress protection rating to IP67.
  • A mechanical life expectancy of >1 million actuations.
  • Operating temperature range from -20°C to + 65°C.
  • Certifications: FCC, IC (for SW915 MHz models), EC (for 868 MHz models).
  • Optional variety of actuator styles (e.g. roller plunger, roller lever, rocker lever, spring rod, others), and transmission range extenders.

For more information, visit www.steutewireless.com; or call (203) 244-6304.
