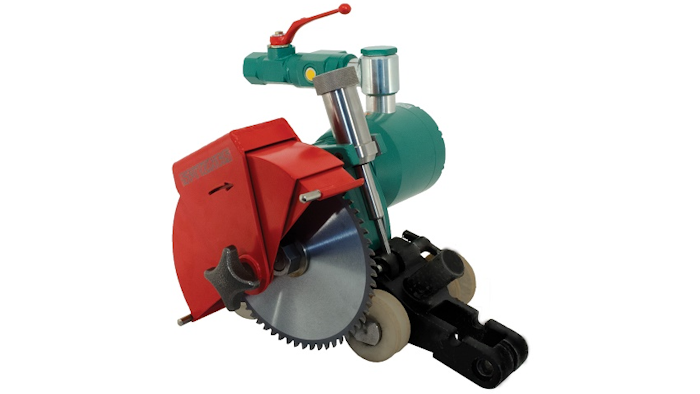

The new pipe cutting machine from CS Unitec (Norwalk, CT) cuts and bevels pipe from 12” to 63” diameter with a wall thickness up to 2”. This 2-speed, pneumatic machine operates at 1800 RPM for cutting, and 350 RPM for low-speed/high-torque beveling. Additional features of Model 5 8002 7000 include:
- The ability to cut ductile iron, non-ferrous metal, HDPE, plastic, concrete pipe and more.
- Beveling of 45˚, 60˚ and 90˚ angles with optional blades for on-site weld preparation.
- 77 CFM air volume at 90 PSI air pressure.
- A weight of 28 lbs. for easy portability, and a compact design and operation, allowing pipe to be cut underground with minimal excavation.
ATEX Certified (Class II 2 GcT6) the tool can be used in industrial and Ex zones where flammable gas, vapor, mist and dust may be present and where surface temperatures do not exceed 185˚F/85˚C.
