Directional Control & Stak Valves

Flui Dyne 5833408c1d3a2

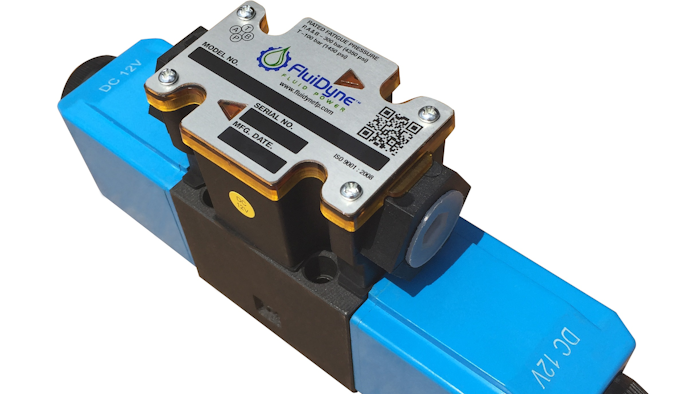

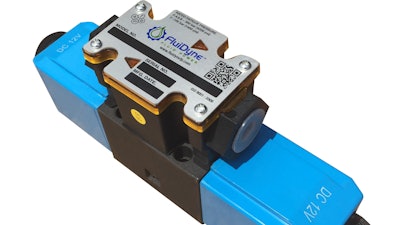

Solenoid operated directional control valves are designed for directing and stopping flow at any point in a hydraulic system. According to FluiDyne (Fraser, MI), its directional valves interchange with Vickers, Rexroth, Parker and all NFPA style valves in the D03-D08 mountings. FluiDyne’s directional control valves are available in 3 way, 4 way, 2 & 3 positions, various spool configurations and most common voltages AC, DC, Rectified coils and DIN or wired housing connections.

Modular Stak Valves are “sandwich” mounted between a directional valve and a standard mounting surface. This helps improves the system’s design flexibility and reduces leakage. They eliminate external leakage and boosts resistance to contamination for a better overall reliable system. Installation costs are less than when using conventional valves. FluiDyne has the Modular Stak Valves in many different functions, including:

  • Relief.
  • Dual crossover relief.
  • Dual check.
  • Flow control.
  • Pressure reducing.

Subplates and multi-station manifolds are also available.

www.fluidynefp.com; 586-296-7200
