Flexible Package Chamber Measures Leaks

New flexible package chamber measures leaks in packaged products, using the principle of force decay.

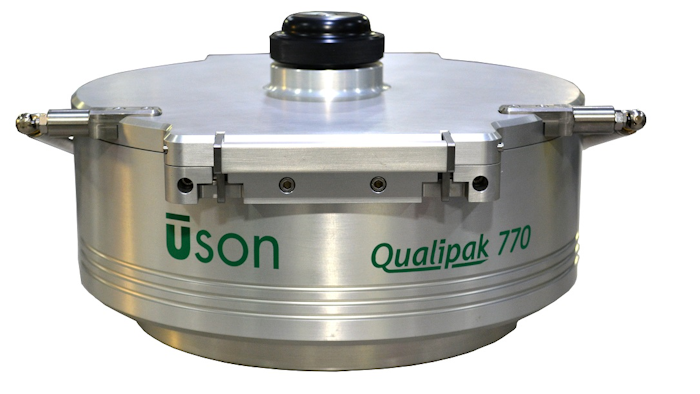

Uson's Qualipak 770 test chamber is designed to support force decay tests.
Uson's Qualipak 770 test chamber is designed to support force decay tests.
Uson

Uson (Houston, TX) has developed the new Qualipak 770 test chamber designed to support force decay test for use on benchtops or mounted into automated systems.

The new flexible package chamber measures leaks in packaged products, using the principle of force decay. The package sample is placed on an infill, on top of a load cell, then sandwiched between the infill and tope plate. The lid is closed and secured. A vacuum is applied causing the package to expand due to any gases remaining in the package. This expansion creates a force on the load cell.

Once the set vacuum or force level is reached, the chamber is isolated, the pack allowed to stabilize and any force change is detected with a sensitive load cell transducer. Any significant change in force decay is indicative of a leak. No significant change in force indicates a good package seal. Additional features include:

  • Small bench footprint; the electronics and pneumatics unit can be located away from chamber.
  • The ability to accommodate different sizes of packages.
  • Can be connected to an Uson Qualitek mR for single devices or an Uson Optima vT for 2-4 simultaneous tests.
  • Simple operation: load, start, pass/fail, unload, and repeat.
  • Easy to scale up from R&D, to production, and mass production.
  • The ability to detect hole size down to 5 microns, depending on pack type.
  • Can be used for testing foil trays.

For additional information, visit https://www.uson.com/; or call 281-671-2000.
