Emergency Pull Wire Switch

It is equipped with snap-action, NC positive-break contacts, providing a safe, reliable means for initiating an emergency stop along the length of the installed pull-wire.

Steute Sized

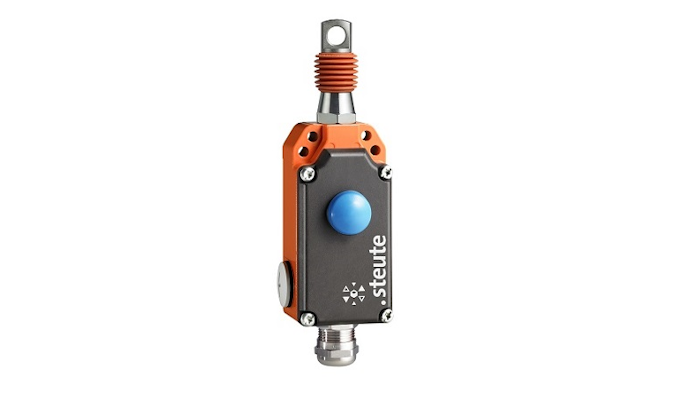

The Series ZS 71 emergency pull wire switch from Steute (Ridgefield, CT) is equipped with snap-action, NC positive-break contacts, providing a safe, reliable means for initiating an emergency stop along the length of the installed pull-wire. Features include:

  • Wire pull and breakage detection.
  • A maximum pull wire length of 35 m.
  • Switching System: Snap-action, positive-break NC contacts.
  • Contacts: 2NC and 1 NO with double break.
  • Contact Material: Silver.
  • Connections: Screw connection terminals.
  • A rugged, corrosion-resistant, powder-coated, die cast aluminum housing.
  • Ingress protection ratings: IP66, IP67, IP69 and IP69K.
  • Integral pushbutton release.
  • Mechanical Life: > 100,000 operations.

www.SteuteXtreme.com; 203-244-6304
