Wireless, Batteryless, Pull-Wire Switches

Features of the pull-wire switches include battery-less operation via self-contained energy generator and the ability to transmit at 915 MHz (USA/Canada/Australia).

Steute Sized 59288a5d41c1a

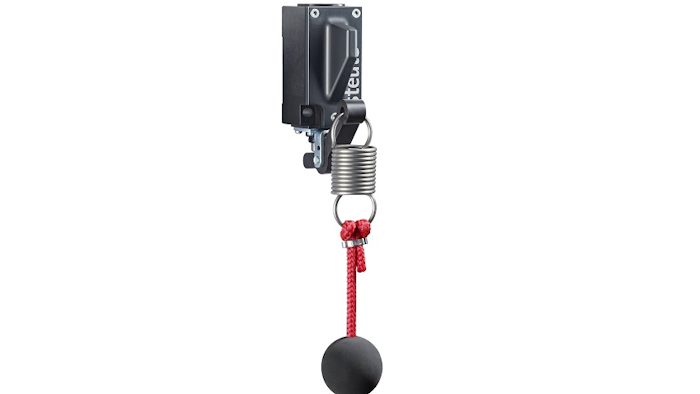

Wireless pull-wire switches from STEUTE Industrial Controls, Inc. (Ridgefield, CT) feature an internal electrodynamic energy generator – no battery required. Displacement of the actuator generates power to send a unique, coded telegram to one or more compatible, easily-programmed receivers. If the pull-wire switch does not receive a signal that the telegram was received by the receiver within 15 ms, it transmits a second telegram. Features of the pull-wire switches include:

  • Battery-less operation via self-contained energy generator.
  • The ability to transmit at 915 MHz (USA/Canada/Australia).
  • A 10.5 ft (3.2 meter) nylon pull cord with rubber grip ball.
  • Maximum nominal transmission range: 164 ft (50 m) indoors, 2,300 ft (700 m) outdoors.
  • Bidirectional communications with Receiver confirming receipt of telegram.
  • Switch action configurable at Receiver (e.g. NO, NC, other).
  • Ingress protection rating:  IP67.
  • Mechanical life expectancy:  > 1 million actuations.
  • Operating temperature range:  -4° F (-20o C) to +150° F (+65o C).
  • Certifications:  FCC, IC (for SW 915 MHz models), EC (for 868 MHz models).
  • Optional transmission range extenders.; 203-244-6304
