Schmersal

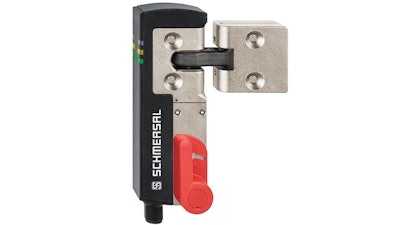

Schmersal (Valhalla, NY) announced the smallest electronic solenoid interlock AZM40, which now offers even more versatile application options with new accessories and new features.
Features:
- Dimensions of 119.5 x 40 x 20 mm
- Suitable for small safety gates or maintenance hatches and confined installation spaces
- 2,000 N locking force
- 40 N latching
- New lockout tag, making it usable for larger, accessible machines and systems
- Able to attach up to six locks to lockout tag when entering danger zone
- Can be extended with emergency exit or emergency release
- Lever available as emergency exit and emergency release and can be mounted directly on AZM40
- Push button available as escape release or emergency release
- Suitable for high temperature, high pressure washdown applications in food & beverage, pharmaceuticals and medical industries
- Designed to be mounted on standard 40mm profiles with no overhang
- Set of two universal mounting plates can be used for AZM40 and actuator for other profile system widths
- Symmetrical housing and actuator approach of 180°
- Integrated RFID sensor
Models are available for guard locking or process protection applications. Several LED status indicators are visible from three sides and make troubleshooting easier with flashing diagnostic codes. The internal monitoring means that this interlock meets the highest safety levels of PLe to ISO 13849 or SIL 3 to IEC 61508.
