Ultra-Small, Portable Device Pump

In addition to ultra-small size and wide flow rate range, NMP 03 offers a long service life, excellent efficiency and leak tightness.

Knf Neuberger Sized

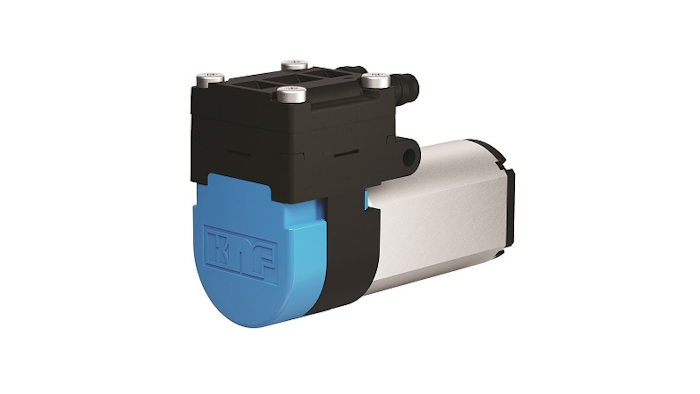

Starting at a lightweight 11g and measuring just 12.9 mm wide and 24.2 mm in length, the KNF NMP 03 micro gas pump from KNF Neuberger (Trenton, NJ) delivers very consistent, linear transfer from a few milliLiters to 500 mL/min. In addition to ultra-small size and wide flow rate range, NMP 03 offers a long service life, excellent efficiency, leak tightness, and quiet, low vibration operation. According to the company, these attributes make the NMP 03 ideally suited for handheld and portable battery-operated applications, such as emissions measurement and gas analyzers. With a wide operating temperature range of -20 °C – +60 °C (environment and gas), NMP 03 is also well-suited for outdoor use and applications involving both hot or cold gases.

Optimize a NMP 03 for your specific application, with material, configuration, and other options, as well as a selection of five standard motors to balance controllability, lifetime, and cost.

www.knfusa.com/nmp03; 609-890-8600
