Water Dog Sliders Handle Aggressive Chemicals

Sliders have an operating temperature range from -400° to +180°F.

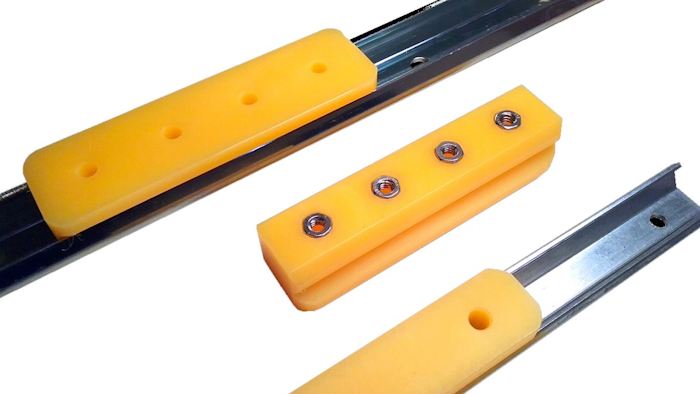

Water Dog Sliders from LM76 can be washed down with aggressive chemicals and caustic foaming agents.
Water Dog Sliders from LM76 can be washed down with aggressive chemicals and caustic foaming agents.
LM76

FDA/USDA/3A-Dairy compliant, Water Dog Sliders from LM76 (E. Longmeadow, MA) feature Corro-Slick coated 300 series stainless steel rails and contoured WDX Polymer blocks. Additional features include:

  • The ability to be washed down with aggressive chemicals and caustic foaming agents.
  • An operating temperature range from -400° to +180°F.
  • The ability to be used dry, submerged in liquids, and in refrigerated and frozen environments.
  • A hard Rc78 Corro-Slick coating applied to the 300 series SS rails for corrosion and wear resistance.
  • Applicability in packaging, food processing, pharmaceutical, bio-pharma, bottling, medical, and dairy industries.
  • Availability in two sizes, WD1 and WD2.

The WD1 rail and block assemblies feature:

  • An assembly footprint of 1.02” x 1” inch high.
  • Standard off-the-shelf rail lengths of 12”, 24”, 36” and 48”.
  • Custom lengths of 157” are available.
  • A design that is 1” (W) x 0.75” (H) x 4” (L) with two SS anchors threaded for 1/4-20 screws.
  • Rails are drilled on 3.15 inch centers.
  • Rails designed for side loads up to 179 lbs and vertical compression loads of 89 lbs.

The WD2 rail and block assemblies feature:

  • A measurement of 1.57” x 1.125” high.
  • Standard off-the-shelf rail lengths are 12”, 24”, 36” and 48”.
  • Custom lengths to 122” are available.
  • A 1.50” (W) x 1” (H) x 5.25” (L) with four SS anchors threaded for 1/4-20 screws.
  • Rails are drilled on 3.15 inch centers and are designed for side loads up to 258 lbs and vertical down loads of 178 lbs.

For additional information, visit http://www.lm76.com; or call 413-525-4166.
