Integrated Motor/Actuator

Incorporating Curtiss-Wright’s patented inverted roller screw technology, the GTX080’s high power density and compact form factor make it an ideal replacement for hydraulic cylinders.

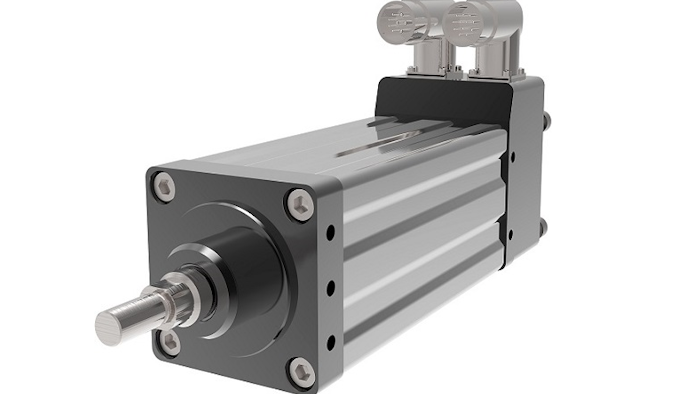

Curtiss Wright Sized

Curtiss-Wright’s Sensors & Controls Division (Chanhassen, MN) has announced the release of the Exlar GTX080 next-generation integrated motor/actuator. The GTX080’s latest design offers substantial performance improvements over its predecessor. Incorporating Curtiss-Wright’s patented inverted roller screw technology, the GTX080’s high power density and compact form factor make it an ideal replacement for hydraulic cylinders, says the company. The GTX Series actuators offer the power, precision, and programmability of a servo system while minimizing the maintenance headaches and mess of hydraulics. With continuous force ratings up to 5680 N (1277 lbf), speeds up to 4200 rpm, and stroke lengths from 100 mm (4 inches) to 450 mm (18 inches), the GTX080 can be applied across a wide range of factory automation applications. The GTX Series features include:

  • High capacity planetary roller screws offering up to 15X the life and significantly higher shock load resistance than a comparably sized ball screw.
  • IP65S (min.) environmental protection.
  • Seamless integration into most leading motion control architectures.
  • Removable front seal bushing, which greatly simplifies maintenance and re-greasing of nut assembly to maximize actuator life.
  • A modular design with bolt-on mounting hardware, allowing mounting style reconfiguration or replacement in the field using commonly available tools.
  • A smoother, quieter operation compared to previous generation designs.

www.cw-sensorsandcontrols.com; 866-508-1306
