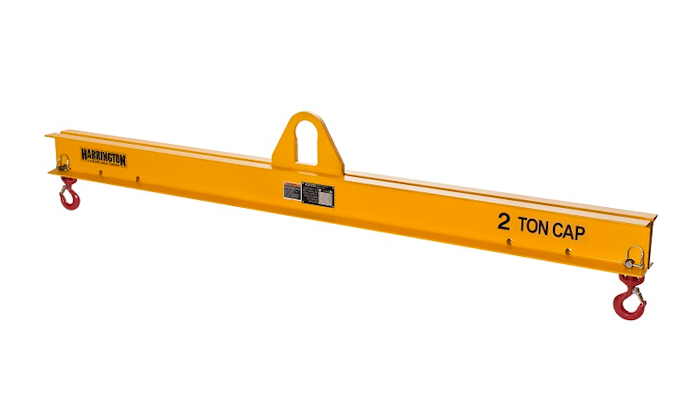

Harrington Hoists, Inc. (Manheim, PA) introduces its HSDLB Standard Duty Lifting Beam which is designed for low headroom applications. Model HSDLB is available from ½ thru 40 Ton capacities with outside spreads from 3 to 30 feet. Additional sizes and capacities are also available. Features include the following:
To minimize wear, the HSDLB features a precision machined bail for a good connection between the saddle of the hook and the upper radius of the bail.
Three standard lift points for load adjustment are included and it is supplied with a pair of heavy-duty swivel hooks. Additional lift points and hardware are available as options.
The HSDLB is engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2 and has a specified fatigue life of 100,001 to 500,000 load cycles.
All HSDLB, Standard Duty Lifting Beams are Proof-Tested to 125% capacity.
