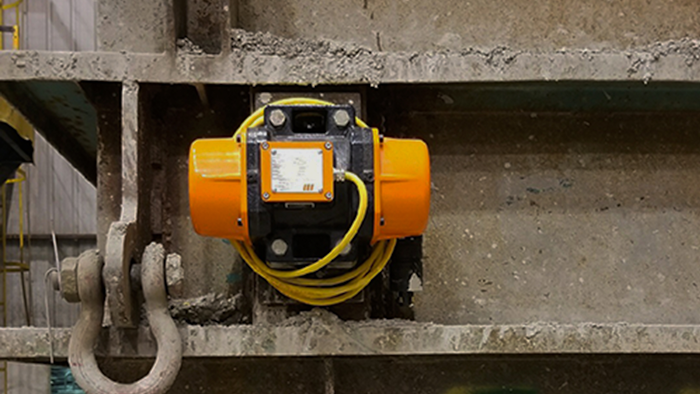

The MB36-3000 fits standard brackets and delivers a high force-to-weight ratio.
Martin Engineering
Martin Engineering (Neponset, IL) has introduced a compact electric vibrator that works on the inside and outside of small diameter precast concrete pipe form cores. The Martin MB36-3000 Concrete Form Vibrator features:
- Improved material strength.
- A high force-to-weight ratio.
- Reliability when using high heat-rated internal components.
- A 14.4 in (365 mm) wide design.
- The ability to fit most standard mounting configurations.
- A 230/460-volt, 3-Phase, 60Hz motor that runs at 3,450 RPM.
- A centrifugal force output of 3,000 lbf (13.3 kN) using permanently lubricated roller bearings in ductile iron bearing flanges.
- Adjustable eccentric weights, which enables operators to customize force and save energy.
- An aluminum casing with a smooth gloss coating and covers sealed by O-rings.
- Internal high temperature Class H windings that can withstand continual use in a heated, sealed environment.
For more information, visit www.martin-eng.com; or call (800) 544-2947.
