Hougen Manufacturing, Inc.

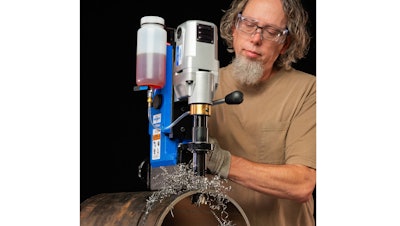

Hougen Manufacturing, Inc. (Swartz Creek, MI) introduced the new HMD904 portable magnetic drill, now enhanced with a permanent magnet for improved safety and versatility.
Features:
- Permanent Rare Earth Magnet that operates without electricity, can be easily engaged or disengaged by turning knob and allows it to grip onto pipes without needing adapter
- Hidden Motor Cord Design that enhances safety and minimizes maintenance
- Built-in pilot light
- Powered by proprietary Hougen motor with aluminum casing
- 5/8” slot drive arbor system
- Positive Slug Ejection
- Robust housing with ergonomic carrying handle
- Storage spot for hex wrench
- Reversible feed handles
- D-ring on back of magnet
- Heavy-duty carrying case for storage or transport
Technical Specifications:
- Weight: 36 lbs
- Dimensions: 18-3/16"H x 7-3/4"W x 12-1/2"L (462mm H x 197mm W x 318mm L)
- Drilling Capacity: 7/16" up to 1-1/2" (12 - 38mm) diameter and 2" (50mm) depth of cut
- Electrical Rating: 9A
- Motor Speed: 450 RPM
- Part No: 0904122
Safety Features:
- No-adjustment safety switch that shuts down drill motor if lift of magnetic base is detected, with LED indicator to alert operator
- Two-stage power switch that prevents drill from rotating unless magnet is engaged
- In event of power interruption, safety circuitry keeps drill motor off until manually restarted
