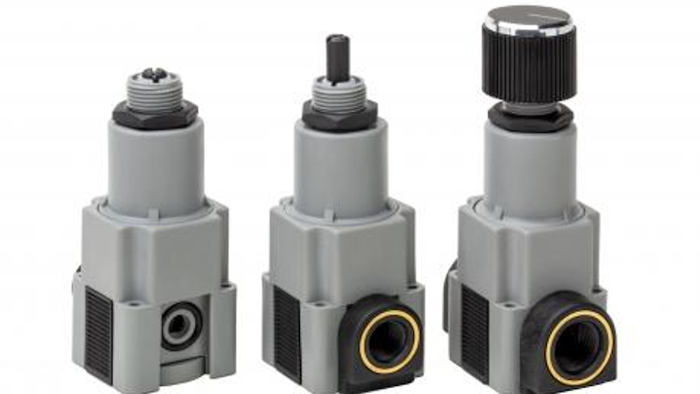

The NR-4000 Non- Relieving Regulator from Air-Logic (Racine, WI) is configured for accurate regulations of pressure without needing a pressure bleed. Setpoint creep and over-shoot are minimized by a combination of elastomeric seat and go high seat force. The Unique Modular Dovetail design allows the regulator to be configured individually or assembled into a modular combination of pneumatic components. Variation of port connections are available. Specifics include:
Adjustment Range: 0.5 to 100 PSI
Maximum Supply: 150 PSI
Operating Temperature: 40° to 150 ° F (4° to 66° C)
Recommended Filtration: 5 Micron
Effect of Supply Variation: Within .25 PSI output change with 10 PSI supply charge
Repeatability: Within .5 PSI when the supply pressure is turned off and on
Supply Consumption: None
www.air-logic.com; 800-558-5950
