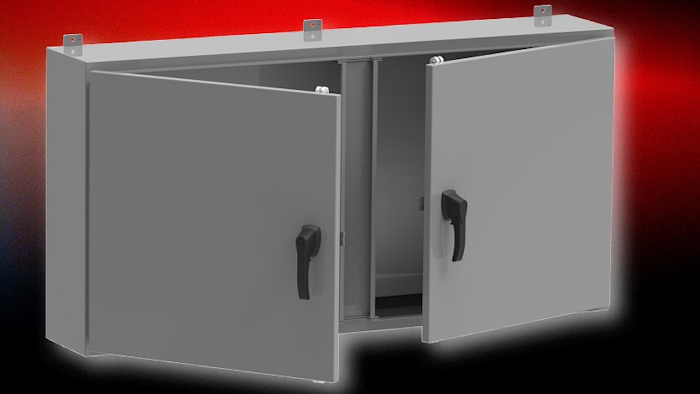

Double-Door Gasketed Wall-Mounted Enclosures

The HN4WM Series gasketed wall mount enclosures from Hammond Manufacturing (Cheektowaga, NY) are sealed to UL 508 Type 4, CSA Type 4 and IEC 60529, IP66, providing protection where the enclosure may be hosed down, installed in wet or dusty conditions or be used in outdoor applications. Additional features include:

• A strong and rigid design that can house a variety of electrical, electronic, hydraulic or pneumatic controls and instruments.
• 12 standard sizes ranging from 24” x 42” x 8” to 48” x 48” x 12”.
• Manufactured from formed 12 gauge steel, phosphatized and finished in recoatable smooth ANSI 61 gray powder coating.
• Doors with a seamless poured-in place gasket for environmental sealing.
• Doors attached with heavy gauge continuous hinges.
• A three-point locking system with a padlockable handle for added security.
• A removable inner panel finished in white powder coating.
• A center post between the doors provides added structural rigidity and is removable.
• A grounding stud in the enclosure and a bonding stud on the door.

For more information, visit www.hammfg.com; or call 519-822-2960.
