CAMI Research Inc. (Acton, MA) announces another new board for its CableEye cable and harness testing systems. Populated with solder pads to accept both aligned and staggered, 1.25mm and 1.5mm pitch, surface mount and through hole (TH) connectors, the board addresses any market with a demand for board-to-board connections. Rated to 700Vdc/500Vac, the CB51 may be used on all CableEye models.

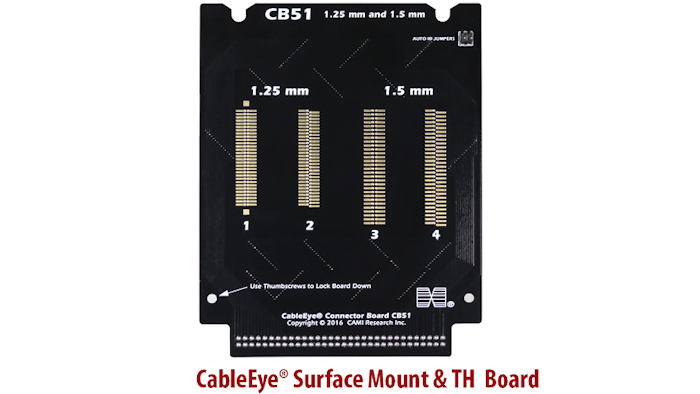

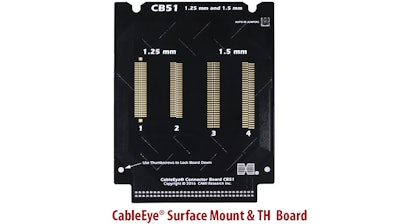

The CB51, sold without connectors, contains four sets of 60 solder pads accommodating numerous configurations of surface mount and TH connectors – aligned or staggered pins at 1.25mmm and 1.5mm pitch. There are four preset locations for automatic detection & display of any-pin-count connector up to 60-pins. Yet, any single set may be fitted with any combination of lower pin count connectors that total to 60 or less (e.g. a 40-pin with a 10-pin). Connectors soldered in non-preset positions will also appear graphically correct once they are mapped with optional PinMap software.
