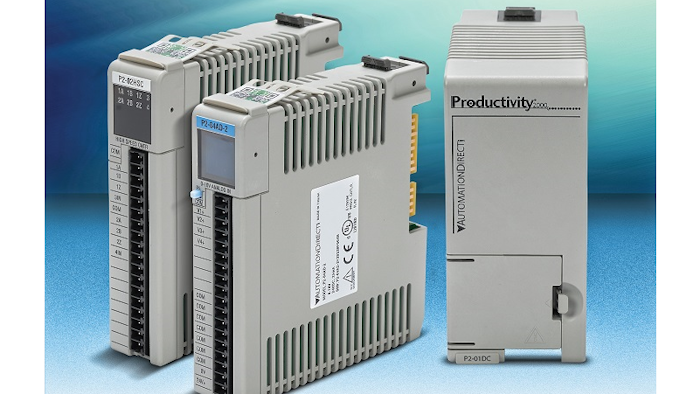

Productivity2000 PLC Analog and Specialty I/O Module

This modular, rack-based system features a full lineup of discrete, analog and specialty I/O modules.

Automation Direct Sized

The AutomationDirect (Cumming, GA) Productivity2000 PLC is a modular, rack-based system with a full lineup of discrete, analog and specialty I/O modules providing over 400 local I/O points. With remote expansion, over 4,000 total I/O points are available. Specifically:

  • Two new 4-channel analog input modules provide 0-20 mA or 0-10 VDC inputs, and two new 4-channel analog output modules supply 4-20 mA or +/- 10 VDC outputs.
  • The new P2-02HSC high-speed counter module provides two independent single-ended 5-24 VDC inputs that accept up to 100kHz of pulse/direction and quadrature signals.
  • The P2-04PWM pulse width modulation module supplies four channels of 5-24 VDC, sinking or sourcing, 0-20 kHz, 0-100% duty cycle outputs.
  • The high-performance Productivity2000 CPU has 50Mb memory, fast scan times and five communication ports including Ethernet that allow programming, expansion and client/server connections (Modbus TCP, EtherNet/IP scanner and adapters).
  • AutomationDirect provides free ProductivitySuite programming software and offers free online Productivity PLC training. The entire Productivity2000 PLC system is backed by a full two-year warranty.; 800-633-0405
