Zuken and Electro Magnetic Applications Collaborate on Cable Harness Design and EMI Reduction

A digital engineering approach to electrical system verification.

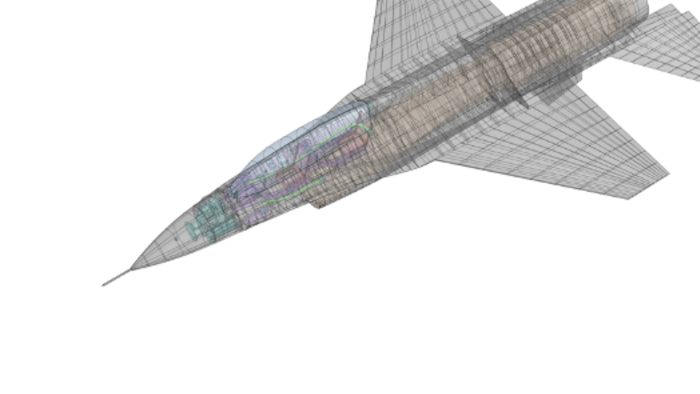

EMA3D captures the electromagnetic compatibility effects of structures with complex cable systems.
EMA3D captures the electromagnetic compatibility effects of structures with complex cable systems.
Zuken/EMA

Zuken Inc., and Electro Magnetic Applications, Inc. (EMA) have entered into a partnership to improve the accuracy of cable harness simulation models for complex electrical subsystems in aircraft and vehicles. The recent collaboration advances Zuken’s digital engineering initiative by enabling design teams to assess, simulate, and validate electrical and electronic designs before they reach manufacturing. This new approach replaces the traditional “design, build, and test” process with a more modern “model, analyze, and build” process resulting in a higher quality product.

The new collaboration between EMA’s EMA3D cable modeling platform and Zuken’s E3.series cable harness design software brings critical detailed design information to the analysis process. Users can now quickly transfer essential design information directly into the EMA3D analysis platform, improving simulation accuracy. Design and safety concerns are more accurately identified and addressed before prototyping, resulting in significant cost and time savings.

Addressing EMC issues at the design stage

Cable harnesses are an integral part of a vehicle or aircraft’s electrical subsystems and are susceptible to external EMI sources such as high intensity radiated fields (HIRF) and lightning strikes. These vehicles or aircraft must undergo extensive electromagnetic compatibility (EMC) certification testing at the physical prototype stage.

EMA3D is a 3D Finite-Difference Time-Domain (FDTD) solver with an integrated multi-conductor transmission line solver. EMA3D is well-suited for simulations that address EMC, HIRF, and lightning strike requirements early in development before physical prototypes are complete.

“EMA3D enables engineers to efficiently analyze complex cable subsystems and evaluate protection schemes for the transportation and aerospace industries,” said Dr. Timothy McDonald, president of EMA. “Collaborating with Zuken to bring the cable harness design details directly into EMA3D will accelerate the time to prototype and improve the level of EMI protection.”

“As products become more and more complex, the ability to access and analyze a design for electrical integrity before manufacturing becomes a basic necessity,” said Kazuhiro Kariya, chief technical officer and managing director of Zuken Inc., Yokohama, Japan. “EMA is the ideal partner to address these challenges with their expertise in the analysis of electromagnetic effects in large systems. Combining Zuken’s E3.series and EMA’s EMA3D platform is an example of digital engineering at its best.”

E3.series is widely used in the manufacturing industry to design large, complex electrical cabling, control cabinet, and wire harness designs for advanced applications in the machinery, power, automotive, transportation, and aerospace and defense industries.

About Electro Magnetic Applications, Inc.
EMA is a global leader in providing simulation, consulting, and measurement services in the technical areas of electromagnetic effects. The company has been in business for over 40 years and is one of the pioneers in using electromagnetic simulation to solve challenging electromagnetic problems for the aerospace market. EMA is the developer behind Ansys EMA3D Cable, which is a dedicated, platform-level electromagnetic cable modeling simulation tool, and one of the Ansys featured electromagnetic solver packages. More information can be found at www.ema3d.com.

About Zuken
Zuken brings automation and efficiency to electrical and electronic design, supporting manufacturers across a broad range of industries in the quest for greater sophistication and optimization through the entire product development process. Founded in 1976, Zuken has the longest track record of technological innovation and financial stability in the electronic design automation (EDA) software industry. The company's extensive experience, technological expertise and agility, combine to create world-class software solutions. Zuken's transparent working practices and integrity in all aspects of business produce long-lasting and successful customer partnerships that make Zuken a reliable long-term business partner. For more information about the company and its products, visit www.zuken.comhttps://blog.zuken.com/, or www.linkedin.com/company/zuken
