Bilsing Automation has announced the implementation of EHLA, a laser cladding process using high-speed Laser Metal Deposition (LMD) that helps protect components from corrosion and wear. As compared to hard chrome plating, thermal spraying and traditional LMD, EHLA provides an economically feasible and environmentally friendly alternative for coating surfaces in less time. This technology has already shown reliability in producing coatings – with different material combinations — for brake discs in automotive ICE or emobility applications.
Bilsing has mounted the laser beam source along with the EHLA processing head and powder feed system on a mobile robot, resulting in a mobile EHLA station that can move to wherever it’s needed in the workshop. This EHLA service is provided at Bilsing Automation Tic. Ltd. Sti., located in Bursa, Turkey

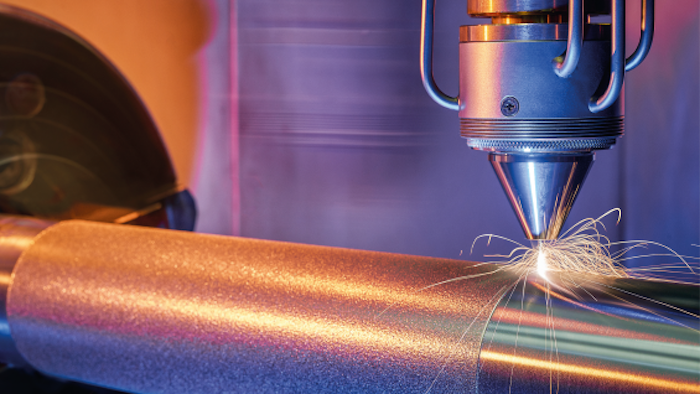

Developed by the Fraunhofer Institute for Laser Technology ILT and the RWTH Aaceh University, EHLA is an extremely high-speed LMD process where the laser melts the powder particles above the melt pool. Fast and reliable, it applies 25 to 250 micrometer thin layers at a speed of up to 500 meters per minute in an economical and chemical-free manner.
Bilsing has previously worked with Fraunhofer ILT on laser hardening of tools and the use of the LMD on titanium components for the aircraft industry. The company is also using a new “HighNo” (High Quality Powder Nozzle”) coaxial nozzle developed by Fraunhofer ILT and the company Harald Dicker specifically for the EHLA process, which demands extremely precise application of the powder particles. Bilsing has used the HighNo to produce a number of its proprietary products, including flexible grippers, handling devices, and forming tools.
A significant advantage of EHLA lies in its low heat input. While the heat generated in traditional LMD affects a zone measured by the millimeter, EHLA’s thermal effect on the material is only in the micrometer range. EHLA thus makes it possible to coat heat-sensitive components, which has previously been impossible due to the resulting brittle phases. This process can also be used for entirely new material combinations, such as coatings on aluminum-base alloys or grey cast iron. It is scalable and can be used to fabricate or repair parts measured in millimeters to meters.
