To heal broken bones using medical help, the surgical method of choice for decades have been metal screws, mainly made of titanium or stainless steel.
During and after the healing process, these metal screws are seen by the body as disturbing foreign bodies and often have to be removed in a further unpleasant surgical intervention.

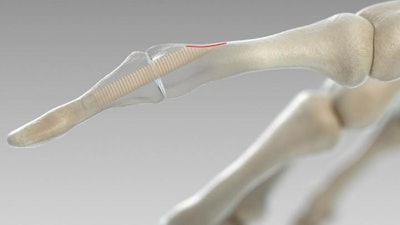

Together with TU Graz's Institute of Biomechanics, in 2013 orthopaedist Klaus Pastl developed an alternative in orthopaedics and accident surgery: the "Shark Screw", made of the specially compact and hard middle layer of the human thigh bone (femur).
So what exactly are the advantages of screws made of donated bone material? The metal doesn't have to be removed and a second operation - as unpleasant as it is risky and expensive - doesn't have to be carried out because the donated material has completely healed into the bones. So well healed that the transplant is no longer visible in an x-ray after one year.
On top of this, the body recognizes the bone screws as belonging to its own body, and danger of infection and complications is reduced to a minimum.
The Shark Screw is being produced from the start-up surgebright, which was founded in 2016, in cooperation with the German Institute for Tissue and Cell Replacement (DIZG) in Berlin. The patented technology is already being used in 14 Austrian hospitals.
Foot & Jaw Surgery
surgebright works closely with the Institute of Biomechanics at TU Graz. Together, they are developing new prototypes of bone screws for foot and jaw surgery in the FFG (Austrian Research Promotion Agency) funded project Bonescrews.
Gerhard Sommer, from the Institute of Biomechanics at TU Graz, explains, "We have to completely rethink the bone screw for application in foot and jaw surgery, and want to develop prototypes for both applications in the framework of the project. In maxillary surgery, extremely small screws are necessary, approximately 20 mm long, which have to withstand great stresses. Because relative to size, the jaw muscle is the most powerful muscle in the human body. In foot surgery, although the screws are bigger, between four and six centimeters long, they are also exposed to large forces, for instance bending forces in surgical corrections on the tarsus."
Complex Biomechanical Tests
The design of the thread of the screws alone has an enormous effect on the bending and shear strength and breaking torque.
In an initial step, researchers have to investigate and understand the forces active in the bone structure of the foot and jaw using laboratory measurements and simulations.
When the parameters for the optimum strength of the screw are defined, such as the inner and outer thickness of the thread or the radius of the thread grooves, the bone screws will be subject to real tests based on DIN standards.
"In general there is a big difference between working with metal screws and screws made of biomaterial. The mechanical principles are the same, but we also have to consider that donated bone material shrinks somewhat during sterilization and two hours after the operation expands again in the body and becomes more elastic. For this reason, we are carrying out extensive investigations and tests - both in dry and rehydrated states," explains Sommer.
Donor Material
The starting material is also crucial. The donated bone material comes from organ donors and is only allowed to be used after strict selection procedures and serological screening.
Not all donated bone material is suitable for the production of bone screws. What is pivotal is the size of the Haverian canals; these are canals in the cortical bone which blood vessels and nerves travel through.
The basis for the preselection of bone material was worked out using electron microscopic investigations at FELMI-ZfE Graz (Austrian Center for Electron Microscopy and Nanoanalysis).
