Swarming Robots Fly in Tight Formations

As long as the machines avoid flying in the predetermined bubble below their neighbor, they can swarm freely without crashing.

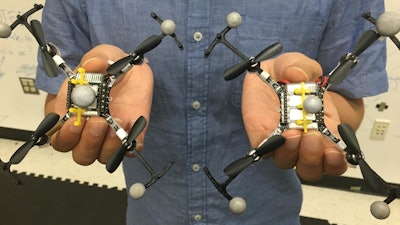

The quadcopters wear virtual 'top hats,' to avoid flying underneath each other.
The quadcopters wear virtual 'top hats,' to avoid flying underneath each other.
Georgia Tech

Georgia Institute of Technology researchers have created a team of free-flying robots that don't collide or undercut each other. This is in addition to autonomous blimps that recognize hand gestures and detect faces, which the team also built for the 2017 IEEE International Conference on Robotics and Automation (ICRA).

In the first, five swarm quadcopters zip back and forth in formation, then change their behaviors based on user commands. The trick is to maneuver without smacking into each other or flying underneath another machine. If a robot cuts into the airstream of a higher flying quadcopter, the lower machine must quickly recover from the turbulent air or risk falling out of the sky.

"Ground robots have had built-in safety 'bubbles' around them for a long time to avoid crashing," said Magnus Egerstedt, the Georgia Tech School of Electrical and Computer Engineering professor who oversees the project. "Our quadcopters must also include a cylindrical 'do not touch' area to avoid messing up the airflow for each other. They're basically wearing virtual top hats."

As long as the Georgia Tech machines avoid flying in the two-foot space below their neighbor, they can swarm freely without a problem. That typically means they dart around each other rather than going low.

Ph.D. student Li Wang figured out the size of the "top hat" one afternoon by hovering one copter in the air and sending others back and forth underneath it. Any closer than 0.6 of a meter (or five times the diameter from one rotor to another) and the machines were blasted to the ground. Then he created algorithms to allow them to change formation mid-flight.

"We figured out the smallest amount of modifications a quadcopter must make to its planned path to achieve the new formation," said Wang. "Mathematically, that's what a programmer wants -- the smallest deviations from an original flight plan."

The project is part of Egerstedt and Wang's overall research, which focuses on easily controlling and interacting with large teams of robots.

"Our skies will become more congested with autonomous machines, whether they're used for deliveries, agriculture or search and rescue," said Egerstedt, who directs Georgia Tech's Institute for Robotics and Intelligent Machines. "It's not possible for one person to control dozens or hundreds of robots at a time. That's why we need machines to figure it out themselves."

The researchers overseeing the second project, the blimps, 3D-printed a gondola frame that carries sensors and a mini camera. It attaches to either an 18" or 36" diameter balloon. The smaller blimp can carry a five-gram payload; the larger one supports 20 grams.

The autonomous blimps detect faces and hands, allowing people to direct the flyers with movements. All the while, the machine gathers information about its human operator, identifying everything from hesitant glares to eager smiles. The goal is to better understand how people interact with flying robots.

The blimps' circular shape makes them harder to steer with manual controllers, but allows them to turn and quickly change direction. This is unlike the more popular zeppelin-shaped blimps commonly used by other researchers.

Zhang has filed a request with Guinness World Records for the smallest autonomous blimp. He sees a future where blimps can play a role in people's lives, but only if roboticists can determine what people want and how they'll react to a flying companion.
