Fast Cool Down Microcryocooler Can Cool IR Sensor in 3 Minutes

New cryocooler enables quick-startup IR sensors for missile applications.

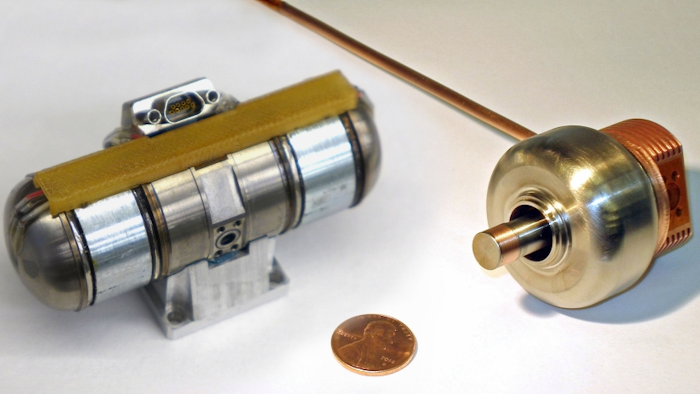

The fast cool down microcryocooler from Lockheed Martin enables quick-reaction systems and smaller satellites.
The fast cool down microcryocooler from Lockheed Martin enables quick-reaction systems and smaller satellites.
Lockheed Martin

A new micro-size cryocooler from Lockheed Martin is enabling quick-startup infrared (IR) sensors for missile and sensor applications.

Cryocoolers are standard components in IR-sensing platforms, from space observation to weapons targeting, and this new highly-compact product enables faster activation and smaller packaging.

“The Fast Cool Down Microcryocooler makes sure our military can have rapid-reaction systems, from missile to passive sensor applications,” said Dr. Jeffrey Olson, a research scientist at Lockheed Martin’s Advanced Technology Center. “We can cool an IR sensor in 3 minutes, versus the 12 to 15 minutes of current systems. That’s crucial when lives are on the line.”

Highly sophisticated electronics like satellite sensors and cameras need to be cooled to detect what they’re designed to capture, even to temperatures as low as -320 F (-195 C).

This microcryocooler uses the same miniaturized compressor as the standard microcrycooler but with a new cold head. The innovative architecture allows engineers to reduce the cold head to just 54 mm long, less than half the length of the previous model.

And at just 320 grams the cooler still provides big capability even for compact, hand-carried weapon systems and small spacecraft, like cubesats. Plus, the Fast Cool Down Microcryocooler delivers these capabilities with a decade-long design life.

The Advanced Technology Center produces a comprehensive cryocooler product line, with previous breakthroughs such as the High Power Microcryocooler variant already offered on the market.
