USB and Ethernet DAQ Device

The T4 is a USB and Ethernet DAQ device that is compatible with Modbus TCP/UDP, making it suitable for a wide range of applications.

Lab Jack Sized

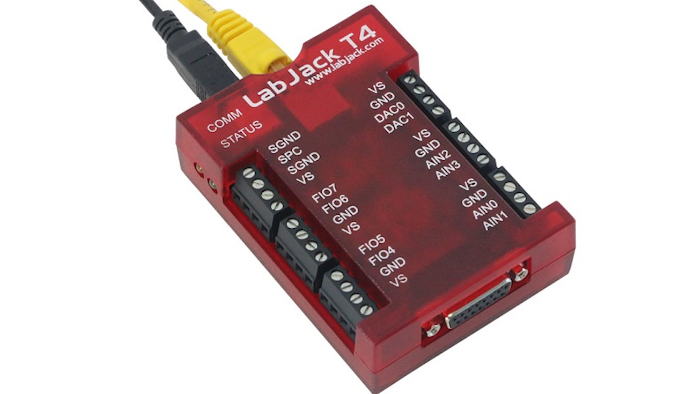

LabJack (Denver, CO) has released a low-cost, Ethernet based data acquisition (DAQ) device to the T-Series family. The T4 is a USB and Ethernet DAQ device that is compatible with Modbus TCP/UDP, making it suitable for a wide range of industrial automation, testing, logging and control applications. Features include:

  • 12 analog inputs (±10V, 12-bit resolution).
  • 16 digital I/O lines.
  • Multiple timers and counters (Pulse Timing, PWM Output, Quadrature Input).
  • Digital I/O lines support SPI, I2C, 1-Wire, and UART.
  • 2 analog outputs (10-bit, 0-5 volts).
  • Easy cross-platform programming (Windows, Mac OS X / macOS, Linux and various ARM-based Linux distributions).

All LabJack hardware have a 5-year warranty and are built to withstand harsh industrial conditions for years of service.

https://labjack.com/products/t4; 303-942-0228
