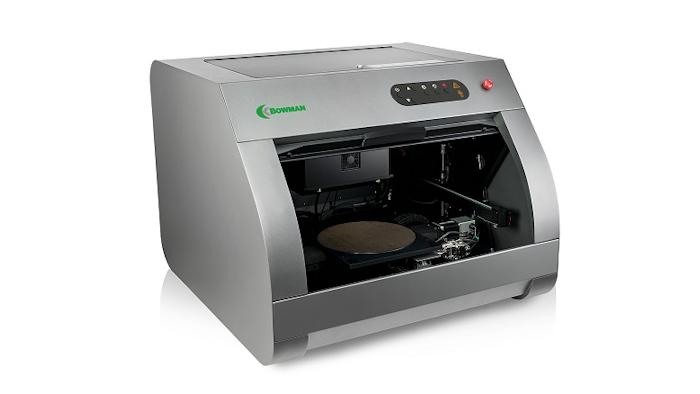

Bowman (Schaumburg, IL) has introduced a new instrument for the smallest features in semiconductors and microelectronics. Bowman’s W Series uses poly-capillary optics to focus the X-ray beam to 7.5 µm FWHM, the world’s smallest beam size for coating thickness analysis using XRF technology. A 150X magnification camera is used to measure features on that scale; it is accompanied by a secondary, low-magnification camera for live-viewing samples and birds-eye macro-view imaging. Bowman’s dual-camera system lets operators see the entire part, click the image to zoom with the high-mag camera and pinpoint the feature to be programmed and measured.
A programmable X-Y stage with precision less than +/- 1 µm for each axis is used to select and measure multiple points; Bowman pattern recognition software and auto-focus features also do this automatically. The system’s 3D mapping capability can be used to view the topography of a coating on a part such as a silicon wafer. The standard configuration of W Series instruments includes:
- 7.5 µm optics with molybdenum anode tube (chromium and tungsten are optional).
- A high-resolution, large-window Silicon Drift Detector which processes more than 2 million counts per second.
www.bowmanxrf.com; 847-781-3523
