Benchtop XRF Instrument

Minimal peak position drift assures highest stability over time and extends the interval between recalibrations.

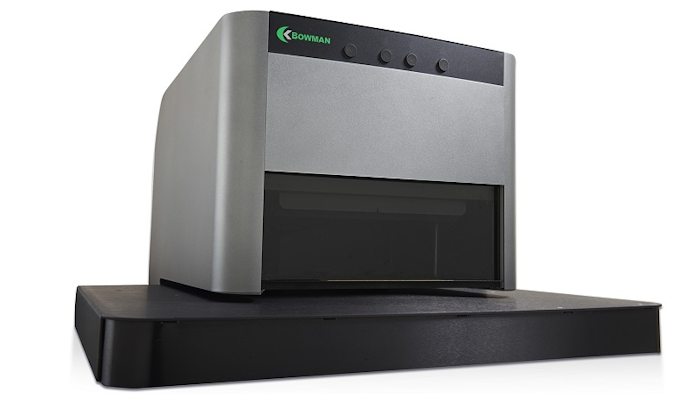

Bowman Sized

Bowman (Schaumburg, IL) has introduced its P Series, a versatile benchtop XRF instrument. Bowman’s P Series simultaneously identifies elements (Al13 through U92 on the periodic table) in each of up to 5 coating layers, with exceptional precision and speed.  It is ideal for test environments with high throughput schedules.

Standard system configurations include a 4-position collimator assembly, variable focus camera for applications with recessed areas, extended-life micro-focus X-ray tube and solid state PIN detector. The detector has well-defined element peaks, eliminating the need for secondary filters. Minimal peak position drift assures highest stability over time and extends the interval between recalibrations. An SDD detector is also available. Additional features include:

  • The intimate proximity of the X-ray tube and detector, a feature of system architecture that produces more than three times the photon counts of conventional XRF equipment - and in a shorter measurement time.
  • An extended programmable XY axis that makes it suitable for measuring small features, or parts such as fasteners, connectors and PCBs. Table size is 25” X 25”; travel is 10” X 10”. It is ideally suited to shops that want to prevent their two costliest issues: rejections from under-plating, and material waste from over-plating.
  • Advanced Xralizer software to quantify coating thickness from the detected photons.  Xralizer software combines intuitive visual controls with time-saving shortcuts, extensive search capability, and "one-click" reporting.  The software also simplifies user creation of new applications.

www.bowmanxrf.com; 847-781-3523
