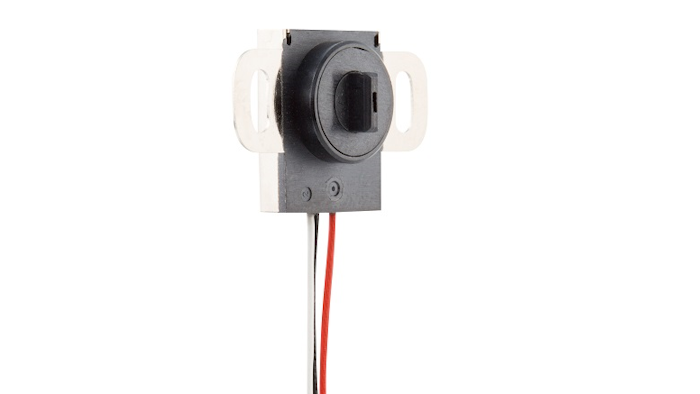

Midori America Corp. (Irvine, CA) offers the CP-1Hx, a small, contactless, dual output precision potentiometer with a housing diameter of 0.82in (21mm) and 0.17in (4.4mm) thickness. This offers up to 360° (dead angle 0.1°) effective electrical angle, voltage ratio output/ PWM output, and IP67 and also has a high-level of protection against EMS, EMI and ESD. In addition, since CP-1Hx offers various shaft configuration options, including the touchless shaft, there is potential for it to be used by various machines.
Although this is a small potentiomter, CP-1Hx is not limited in only offering single output (3-wire), but also comes in dual output (6-wire) such as parallel outputs and cross outputs.
