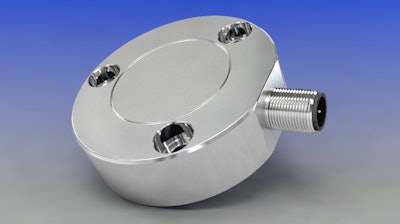

The new POSIROT PRAS6 non-contact analog angle sensor from ASM Sensors.
ASM Sensors
ASM Sensors (Elmhurst, IL) has introduced the new POSIROT PRAS6 non-contact analog angle sensor. The sensor measures angular displacement and position of rotating objects from 0° to 360° using magnetic Hall Technology. Additional features include:
- Magnetic encoder technology that is contactless and solid state.
- Resistance to shock and vibration.
- A laser-welded stainless steel 1.4404 housing suited for hygiene-critical applications with intensive cleaning and sterilization processes.
- A hermetically-sealed housing that is suitable for humid, wet and dirty applications — even underwater. A protection class to IP69K.
- The ability to be equipped with redundant electronics. Measurement ranges from 0°-15° to 0°-360° (in 15° increments).
- Outputs available in 0.5-10 V, 0.5-4.5 V or 4-20 mA.
- Resolution of ±0.3% (60°-360°) and ±0.1% (15°-45°).
- A linearity specification of ±0.3% of full scale.
For more information, visit www.asmsensors.com, or call 888-ASM-USA1.
