Open Circuit Axial Piston Pump

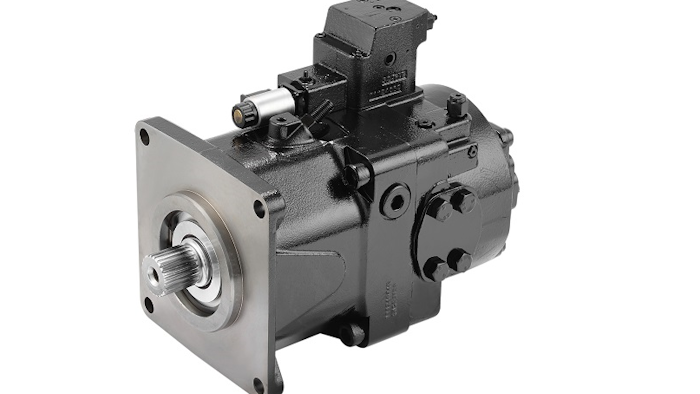

The D1 pump is a high pressure, high flow variable displacement axial piston pump, developed specifically for open circuit systems in extreme environments.

Danfoss Sized

Danfoss Power Solutions (Ames, IA) has introduced the D1 High Power Open Circuit Axial Piston Pump to the North American market. The D1 pump is a high pressure, high flow variable displacement axial piston pump, developed specifically for open circuit systems in the most extreme application environments. Its robust design makes it an ideal solution for mining, heavy duty construction, forestry, material handling and marine, oil and gas markets. The addition of the D1 pump expands the Danfoss open circuit portfolio to include higher hydraulic power options β€” up to 160gpm [600lpm] β€” for OEM customers. Working seamlessly with the new PVG 128/256 high flow valves, OEMs have the ability to extend hydraulic support for all their high flow system needs. The D1 pump is offered with:

  • Four displacement options from 130-260cc.
  • Pressure, load sense, power limiting and displacement controls.
  • Output pressure up to 350bar [5075psi] continuously, 400bar [5800psi] intermittently.
  • An integral charge pump allows the D1 pump to run at speeds up to 2500rpm.

www.danfoss.com; 515-239-6000
