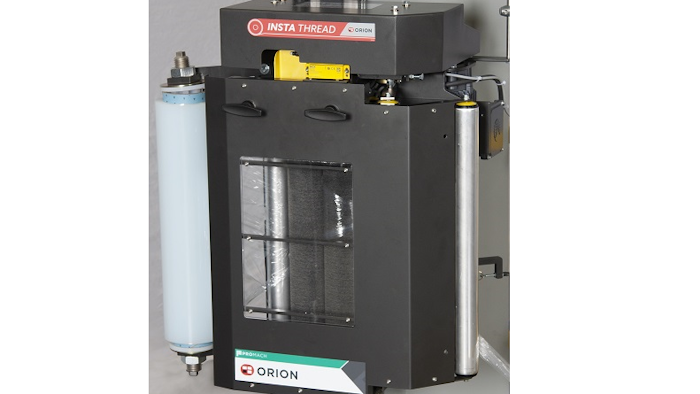

The patented “S” design on the newly redesigned S-Carriage InstaThread Pre-stretch Film Carriage from Orion Packaging Systems (Alexandria, MN), a division of ProMach, can save up to 15% on film per load – a substantial savings to help offset the rising cost of film seen over the past year.
At the heart of the design are two pre-stretched rollers. Film travels in an S pattern around the rollers, providing over 180° of film contact to reduce slippage and neckdown. The result is a consistent pre-stretch of 260% at different tensions and 1” less neckdown. In other words, achieving this consistent level of pre-stretch means the customer can wrap faster while receiving better film yield; it reduces film acquisition costs for shippers and improves end-user sustainability through less waste.
Changing film is safer and easier with Orion’s S-Carriage’s InstaThread design. When loading a new roll of film customers don’t have to weave film through the rollers. Rather, the InstaThread design has streamlined this process by simply opening the dual lock carriage door, pulling the film right through the middle of the rollers and closing the carriage doors. Other features and benefits of the redesigned S-Carriage InstaThread Pre-stretch Film Carriage include:
- A dual chain drive that won’t wear and stretch like belt driven carriages.
- A dancer bar that comes with multiple holes for easy adjustment of springs.
