Linear Motor Stages

The low-profile design of only 63mm minimizes moving mass and tilting errors.

Pi Sized

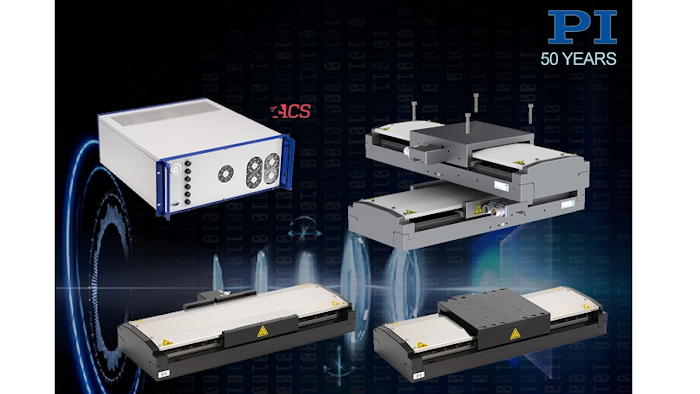

PI (Auburn, MA) introduces a new motion controller and precision linear stage family geared towards precision industrial automation applications. The V-817 linear stages, engineered for highly dynamic and precise motion, boast a load capacity of 600N, travel ranges from 8โ€ (204mm) to 32โ€ (813mm) and velocities to 3000mm/sec. Driven by 3-phase linear motors and guided by robust recirculating ball bearing guides, the low-profile design of only 63mm minimizes moving mass and tilting errors. An integrated linear encoder provides <1nm resolution and when operated with PIโ€™s industrial motion controllers, the stages achieve 10nm minimum incremental motion, 1ยตm bidirectional repeatability, and 2.5ยตm accuracy.

Stages can be combined for XY motion thanks to an available platform with a triple M6 hole pattern. The V-817 is only 63mm high (without the platform), making it easy to integrate into compact machine assemblies. The stages are compatible with the new G-901 industrial motion controller family.

www.pi-usa.us/en; 508-832-3456
