Smooth, Quiet Motion

The solid construction of the Type ATG further contributes to its increased load capacity and rigidity.

Thk
Thk
THK Co.

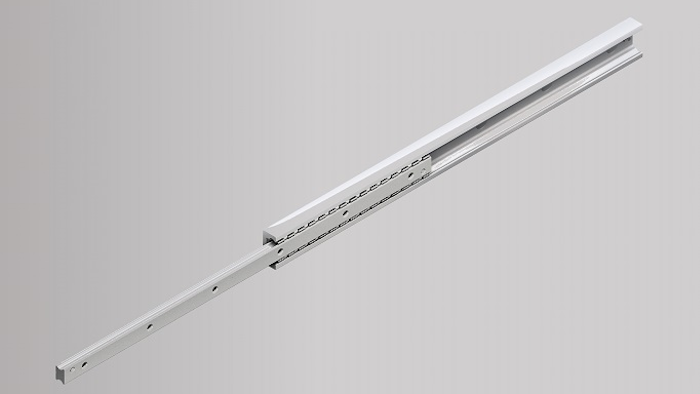

The new Telescopic Type ATG Utility Slider from THK (Schaumburg, IL) combines proven smooth motion technology with fully hardened raceways to enable high load capacity and ensure a long service life. The Type ATG utilizes THK Circular-Arc Raceway Technology for equal to or higher permissible load capacities than Gothic Arch Raceway designs. Circular-Arc Technology achieves less differential slip between the ball and the raceway, resulting in reduced cage displacement, as well as decreased friction and wear. Full stroke reliability is achieved due to the shape of the grooves. The solid construction of the Type ATG further contributes to its increased load capacity and rigidity.

The Type ATG features patented THK Caged Technology for smooth and quiet motion. Caged Technology employs a synthetic resin cage with a patented curvature that cradles each ball and separates it from the next. The spaces between the rolling elements retain grease and act as a lubrication system for long-term maintenance-free operation. Other Caged Technology benefits include increased speed and accuracy, decreased noise levels, low dust generation and long life.

www.thk.com; 847-310-1111
